Запчасти Case IH 9010 (88.220.03) - KNIFE FRAME, FIXED - 9010 (88) - ACCESSORIES

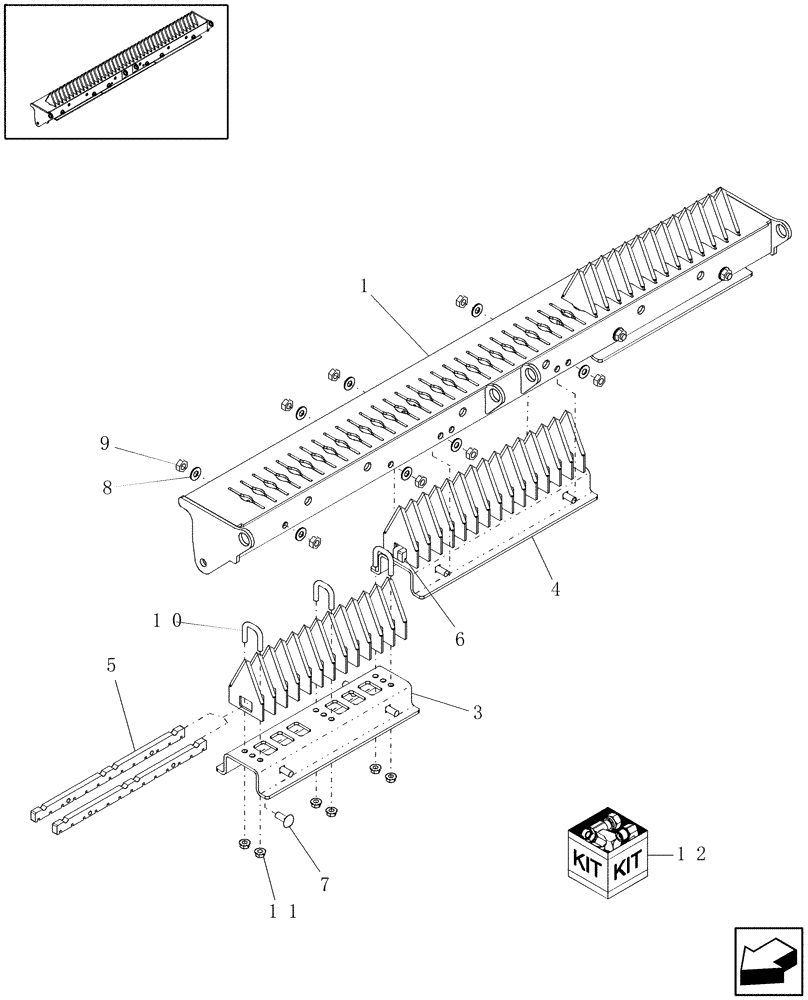

Схема запчастей Case IH 9010 - (88.220.03) - KNIFE FRAME, FIXED - 9010 (88) - ACCESSORIES
4
11
8
6
10
9
12
3
5
1
7

Артикул

Название

Примечание

Количество

1

87578082

FRAME

Bar, Knife

1шт.

2

87106692

KNIFE SECTION

41шт.

3

87578084

SUPPORT ASSY.

2шт.

4

87585835

SUPPORT ASSY.

Knife, Wide

1шт.

5

87633177

RETAINER

Knife, Narrow

4шт.

6

87633179

RETAINER

Knife, Wide

2шт.

7

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

12шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

10

87391950

U-BOLT

BOLT "U"

9шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

18шт.

12

87670027

SERVICE KIT

Knife Bar, Fine Cut; Includes: Refs 1, 3 Thru 11, As Indicated, Plus Instructions

1шт.

Выбрано товаров: 11
