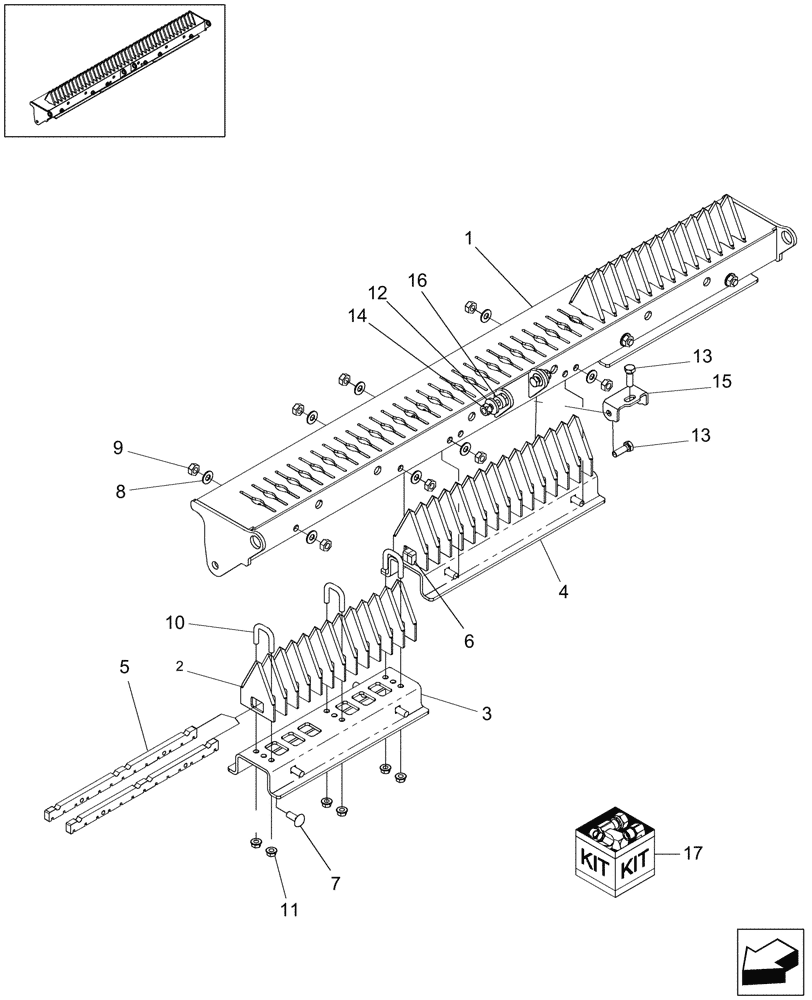

Запчасти Case IH 9010 (88.220.03[02]) - KNIFE FRAME, FIXED - PIN HAJ202001 & AFTER - 7010/8010 (88) - ACCESSORIES

1

87578082

FRAME

Bar, Knife

1шт.

2

87106692

KNIFE SECTION

Std Cut (21), Fine Cut (41)

41шт.

3

87578084

SUPPORT ASSY.

Knife, Narrow; Std Cut (3), Fine Cut (2)

3шт.

4

87585835

SUPPORT ASSY.

Knife, Wide

1шт.

Fine Cut Only

1шт.

5

87633175

RETAINER

Knife

6шт.

Standard Cut Only

1шт.

5

87633177

RETAINER

Knife, Narrow

4шт.

Fine Cut Only

1шт.

6

87633179

RETAINER

Knife, Wide

2шт.

Fine Cut Only

1шт.

7

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

12шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

9

100016

NUT,M10 x 1.5, Cl 8

12шт.

10

87391950

U-BOLT

BOLT "U"

9шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

18шт.

12

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

3шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

15

87592357

BRACKET

1шт.

16

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

2шт.

17

87670026

SERVICE KIT

Knife Bar, Std Cut; Includes: Refs 1, 3 Thru 11, As Indicated, Plus Instructions

1шт.

17

87670027

SERVICE KIT

Knife Bar, Fine Cut; Includes: Refs 1, 3 Thru 11, As Indicated, Plus Instructions

1шт.
