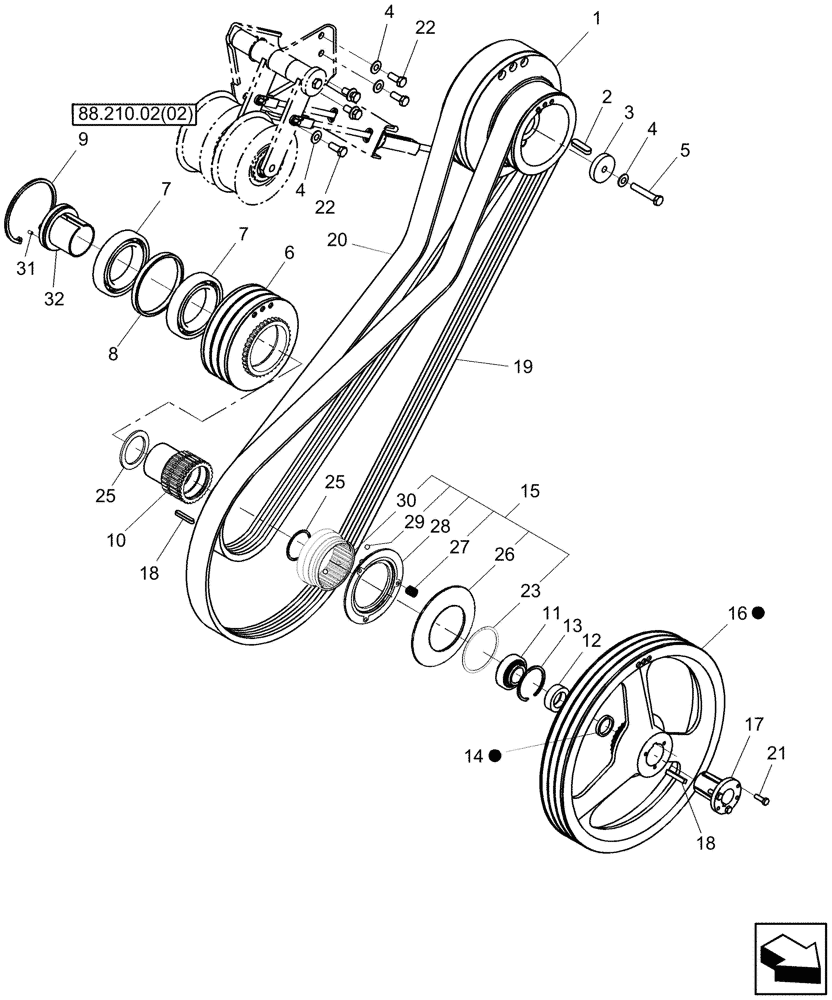

Запчасти Case IH 9010 (88.210.05[02]) - STRAWCHOPPER DRIVE - PULLEYS AND BELTS - PIN HAJ202001 & AFTER - 7010/8010 (88) - ACCESSORIES

1

87281239

PULLEY,275mm OD

Dual, Grooved

1шт.

3000 RPM

1шт.

1

87283335

PULLEY,255mm OD

Dual, Grooved

1шт.

2800 RPM

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

5

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

6

87510526

PULLEY,185mm OD

1шт.

7

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

2шт.

8

87510529

SPACER,114.3mm ID x 124.5mm OD x 11mm L

1шт.

9

388294

SNAP RING,M125 x 4mm Thk, Internal

1шт.

10

87510527

HUB

Hub

1шт.

11

86976370

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

1шт.

12

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

1шт.

13

131692

SNAP RING,2.8" ID x 3" OD x 0.095" Thk, External

3" Free OD

1шт.

14

87282629

SPACER

1шт.

15

87283584

COLLAR,36T

Shifter

1шт.

16

87283586

PULLEY,467.7mm OD

1шт.

16

87325137

PLATE

1шт.

16

87283587

GEAR,36T

1шт.

16

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

17

87107341

BUSHING,34.9mm ID x 74.6mm Thk

1шт.

18

87485

KEY,50.8mm OAL x 7.96mmThk

Square, 5/16" x 2"

2шт.

19

86517680

V-BELT,3 Rib, 3045mm Nominal Length

3 HB

1шт.

20

86976208

V-BELT,3 Rib, 2720mm Nominal Length

1шт.

3000 RPM

1шт.

20

87283315

V-BELT,16.00 mm W x 2690.00 mm L, 3 Ribs

3 HB

1шт.

2800 RPM

1шт.

21

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

22

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

23

87283582

RETAINER,119.253mm ID x 125.603mm OD x 1.829mm Thk

Ring

1шт.

25

87337454

RETAINER

Series RR, #256

1шт.

26

87283581

PLATE,125.25mm ID x 200mm OD x 3.025mm Thk

1шт.

27

87283583

COMPRESSION SPRING,12.44mm ID x 31.75mm Free Length

3шт.

28

87283580

RING,131.25mm ID x 15mm Thk

Retainer

1шт.

29

87038215

BALL,10mm OD, Gr 200

10mm, GR 200, SS

3шт.

30

87283579

COLLAR,36T

Shift

1шт.

31

87019103

SET SCREW,M6 x 10mm

HSH, M6 x 1 x 10

7шт.

32

87510844

HUB ASSY.

1шт.
