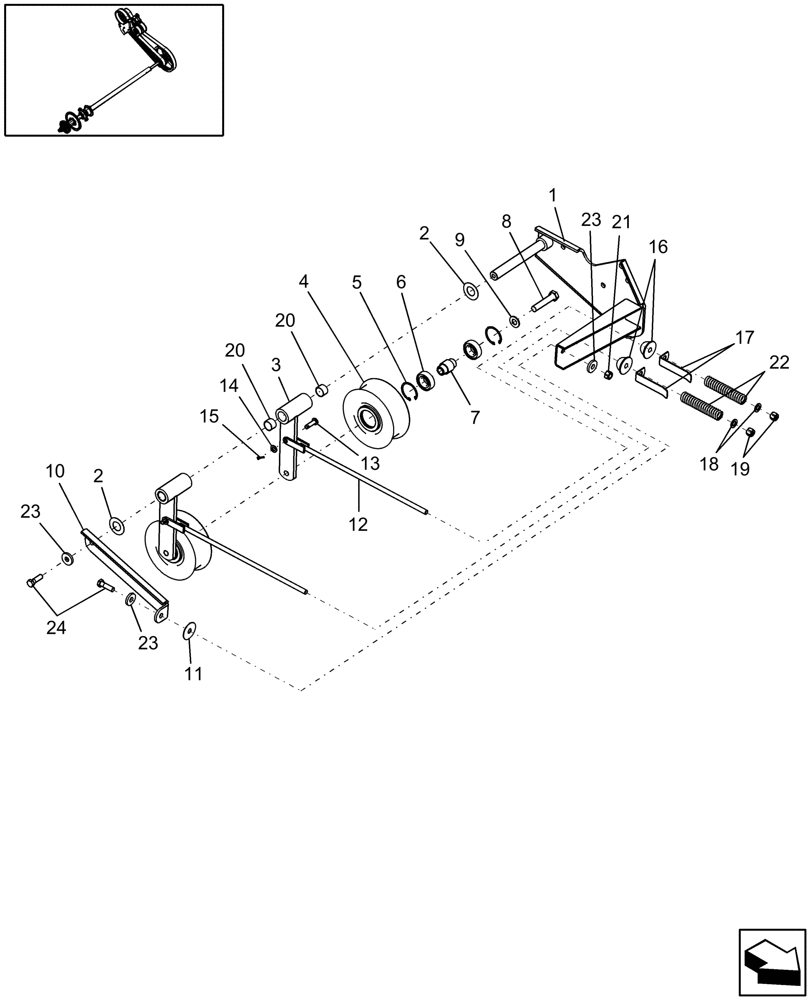

Запчасти Case IH 9010 (88.210.02) - TENSIONER - STRAW CHOPPER - 9010 (88) - ACCESSORIES

1

87397837

BRACKET

1шт.

2

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

2/ARшт.

3

87398361

LEVER ASSY.

Includes: Ref 20 (2)

2шт.

4

84072441

IDLER,180mm OD

2шт.

5

370011

CIRCLIP,M52 x 2mm Thk, Internal

4шт.

6

84057966

BALL BEARING,25mm ID x 52mm OD x 15mm W

4шт.

7

84057817

BUSHING,16.5mm ID x 32mm OD x 53.8mm L

2шт.

8

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

2шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

10

87397839

PLATE

1шт.

11

87397840

SHIM,13mm ID x 50.7mm OD x 1.7mm Thk

1/ARшт.

12

86975966

ROD,501.5mm OAL

2шт.

13

390040

COTTER PIN,10mm OD x 39mm L

2шт.

14

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

15

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

16

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

2шт.

17

86596885

INDICATOR

2шт.

18

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

19

412126

NUT,M12 x 1.75

2шт.

20

NSS

NOT SOLD SEPARAT

Bushing

4шт.

21

100038

NUT,M12 x 1.75, Cl 8

1шт.

22

87540186

SPRING,129.3mm Free Length

2шт.

23

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

3шт.

24

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.
