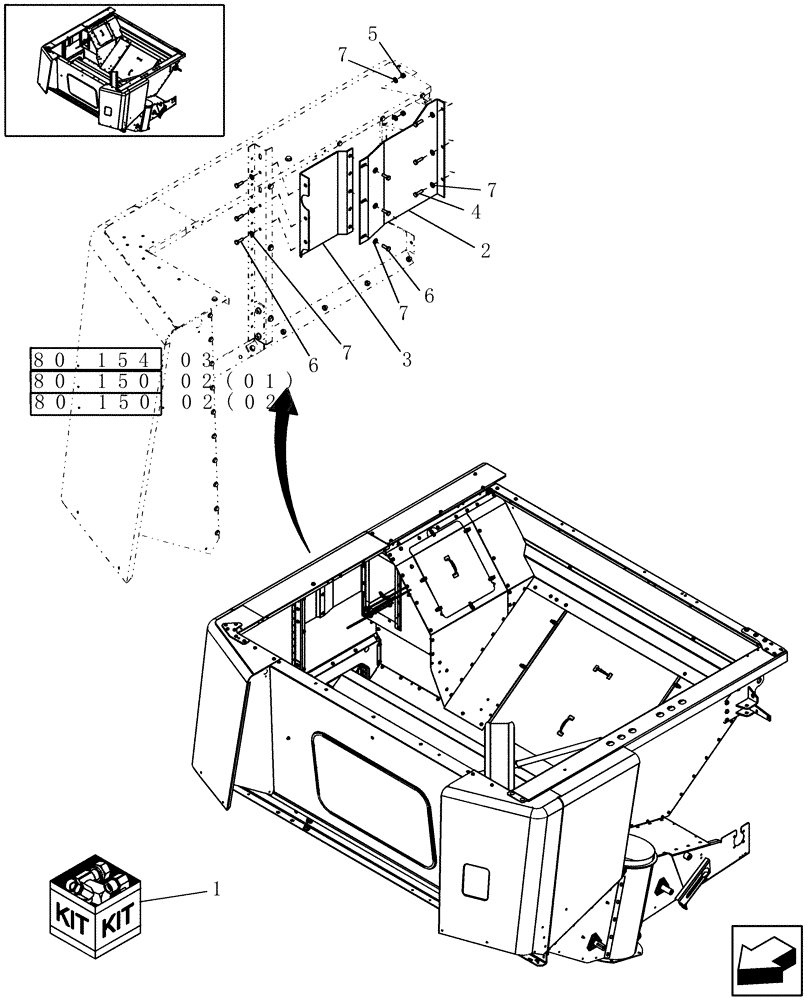

Запчасти Case IH 9010 (80.180.20) - KIT, BUBBLER SUMP WEAR (80) - CROP STORAGE/UNLOADING

1

87753011

DIA KIT, HARVESTER

Bubbler Sump Wear; Includes: Refs 2 Thru 7, Plus Instructions

1шт.

2

87645802

PLATE

1шт.

3

87645805

PLATE

1шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.
