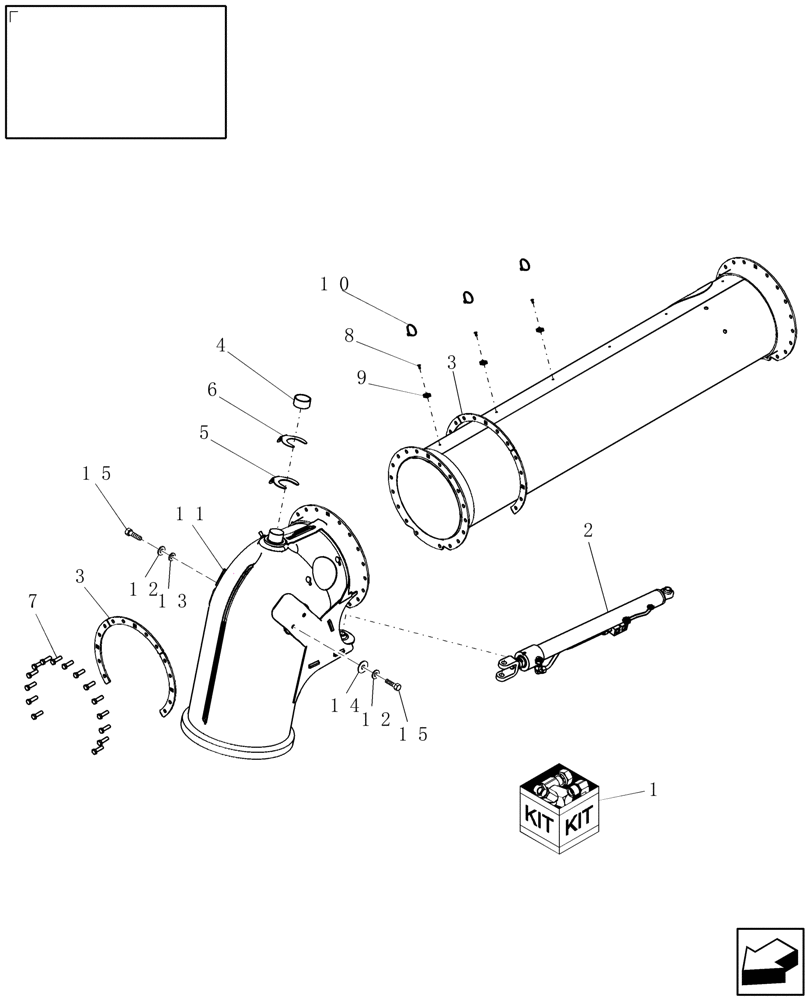

Запчасти Case IH 9010 (80.180.19) - KIT, UNLOAD ELBOW REINFORCEMENT - 7010/8010 (80) - CROP STORAGE/UNLOADING

1

87474233

DIA KIT, HARVESTER

Unload Elbow Reinforcement

1шт.

2

87645216

HYDRAULIC CYLINDER

Unloading Auger Swing, Serial Range: -YAG208435

1шт.

2

84126280R

REMAN-HYD CYLINDER

Unloading Auger Swing

1шт.

2

84126280C

CORE-HYD CYLINDER

Return Number

1шт.

2

84126280

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 591mm Stroke

Replaces Cylinder 87645216, Unloading Auger Swing, Start Serial: YAG208435

1шт.

2

84126280R

REMAN-HYD CYLINDER

Unloading Auger Swing

1шт.

2

84126280C

CORE-HYD CYLINDER

Return Number

1шт.

3

87757103

GUSSET

6шт.

4

86584089

BUSHING,57.3mm ID x 63.65mm OD x 32mm L

1шт.

5

87620925

SHIM,3.2mm Thk

1шт.

6

87627724

SHIM,1.7mm Thk

1шт.

7

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

15шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

3шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

3шт.

10

86566989

CABLE TIE,208mm L

CABLE STRAP

3шт.

11

84126361

ELBOW,Unloading Auger

1шт.

12

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

3шт.

13

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

14

327084

WASHER,13mm ID x 52mm OD x 5mm Thk

2шт.

15

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

3шт.
