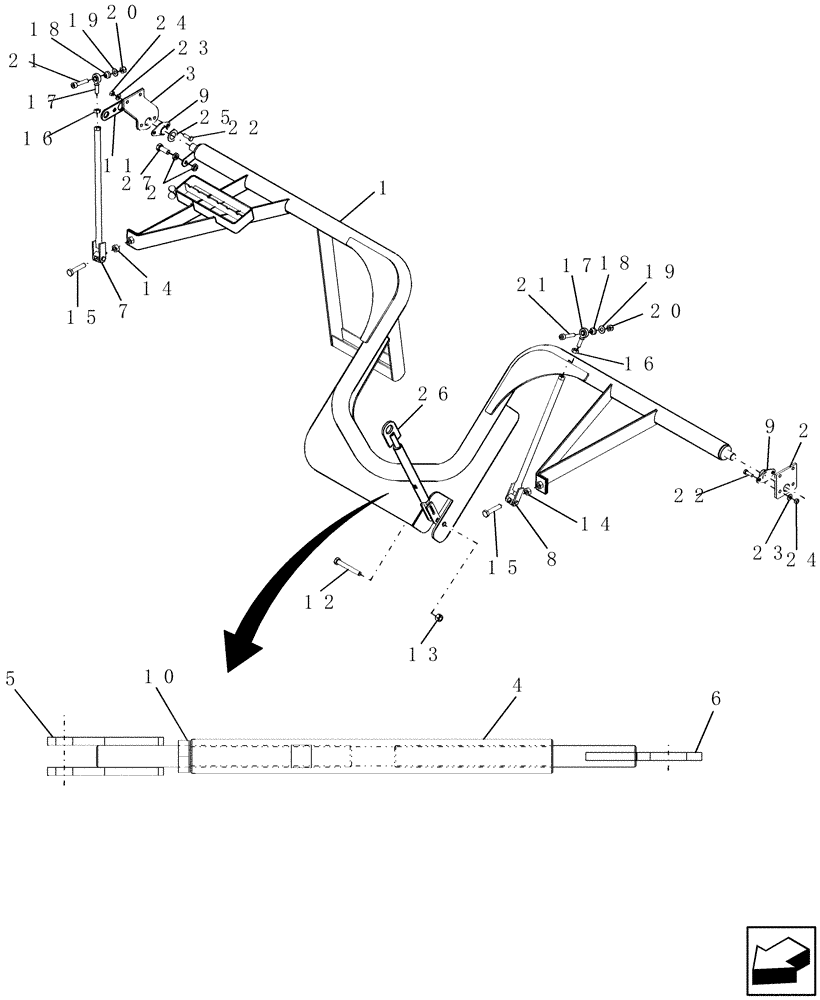

Запчасти Case IH 9010 (80.154.09) - HINGE SYSTEM, GRAIN TANK COVERS (80) - CROP STORAGE/UNLOADING

1

87727644

FLEXIBLE CONTROL

Hinge

1шт.

2

84076404

SUPPORT

1шт.

3

84076417

SUPPORT

1шт.

4

87108035

TUBE,25.40 mm OD x 270 mm L

Grain Tank Covers

1шт.

5

87108044

CLEVIS

1шт.

6

87108037

PLATE

1шт.

7

84076427

ROD

Swivel Connection

1шт.

8

84076437

ROD

Swivel Connection

1шт.

9

338712

FLANGED BEARING

Bearing

2шт.

10

100095

THIN NUT,Thin, M16 x 2, Cl 04

2шт.

11

87281607

BRACKET

Sensor Tab

1шт.

12

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

1шт.

13

100038

NUT,M12 x 1.75, Cl 8

1шт.

14

9706685

NUT,M12 x 1.75, Cl 8

2шт.

15

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

15

300512

BOLT,Hex, M12 x 55mm, Cl 8.8

2шт.

16

100016

NUT,M10 x 1.5, Cl 8

2шт.

17

87645795

SWIVEL CONNECTION

2шт.

18

84076466

BUSHING,12.9mm ID x 20mm OD x 12.1mm L

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

21

84015950

HEX SOC SCREW,M10 x 50mm, Cl 8.8

2шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

9706690

NUT,M8 x 1.25, Cl 8

4шт.

25

84434145

WASHER,M23 x 38 x 2 Thk

1шт.

26

87108033

LINKAGE

Includes: Refs 4, 5, 6 & 10

1шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

28

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

2шт.
