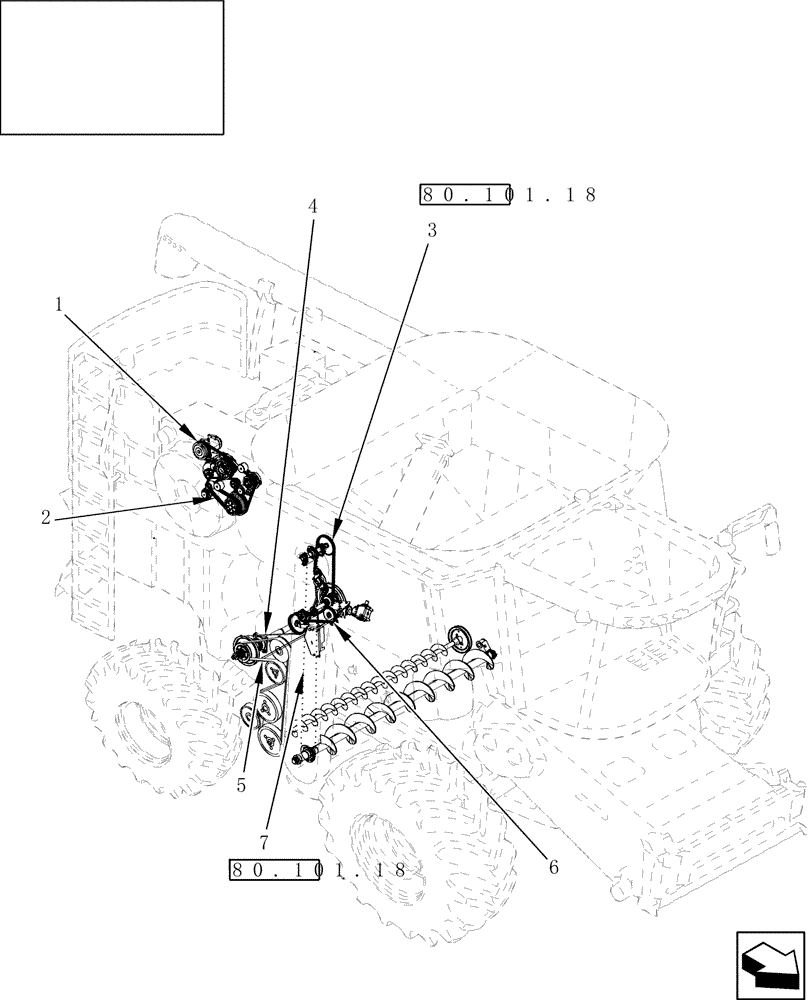

Запчасти Case IH 9010 (05.000.02[05]) - BELTS & CHAINS - RIGHT SIDE - 9010 (05) - SERVICE & MAINTENANCE

1

504212528

BELT

Alt., A/C, Water Pump

1шт.

2

504049425

BELT

Fan

1шт.

3

87470737

CHAIN,RC60, 104 Links x 19.05mm = 1981.08mm

levator Drive

1шт.

4

86975809

V-BELT,0.88" W x 1844.04mm Nominal Length

Bubble Up Drive

1шт.

5

87283139

V-BELT,4622.8mm Nominal Length

Tailings Processor, HCC

1шт.

6

87470736

CHAIN,RC60, 65 Links x 19.05mm = 1238.3mm

Bubble - Up Drive

1шт.

7

87281911

ELEVATOR CHAIN,CA550HD, 145 Links x 41.4mm = 6003mm

Includes Paddles

1шт.
