Запчасти Case IH 9010 (80.101.35) - KITS, SLOW DOWN - ELEVATOR & GRAIN TANK (80) - CROP STORAGE/UNLOADING

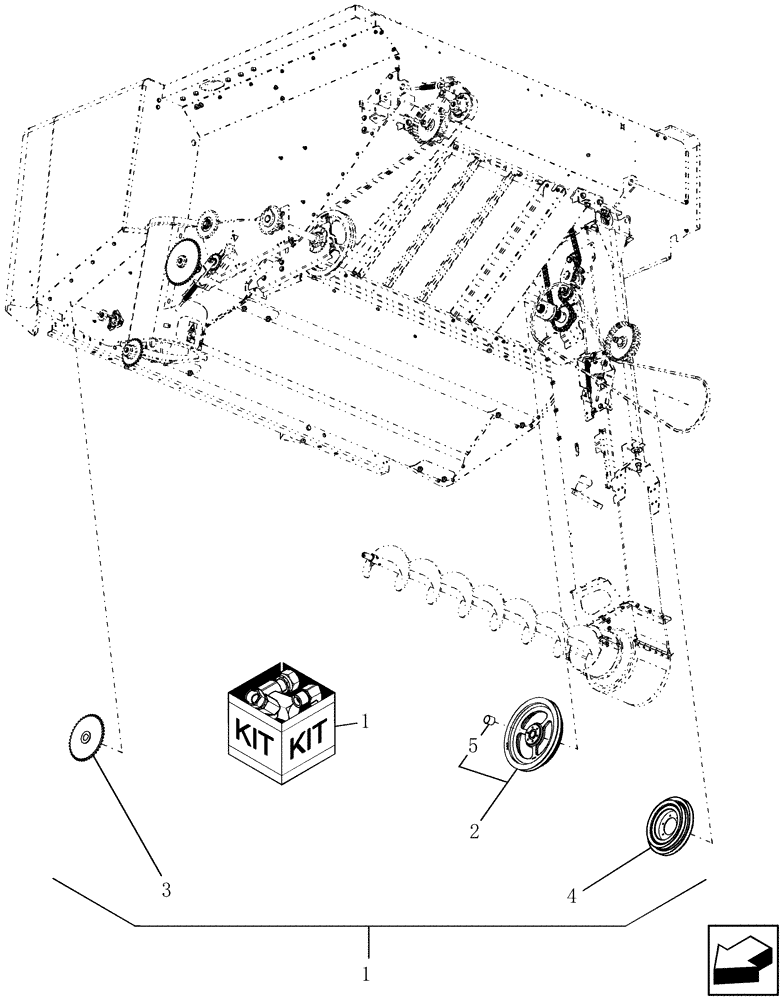

Схема запчастей Case IH 9010 - (80.101.35) - KITS, SLOW DOWN - ELEVATOR & GRAIN TANK (80) - CROP STORAGE/UNLOADING
5
3
4
1
1
2

Артикул

Название

Примечание

Количество

1

84084386

DIA KIT, HARVESTER

Slow Down - Elevator & Grain Tank, Includes Refs 2, 3, 4, & 5

1шт.

1

87753906

DIA KIT, HARVESTER

Slow Down - Elevator; Includes: Refs 2, 4, & 5

1шт.

2

86976480

PULLEY

Driven; Includes: Ref 5

1шт.

3

84069677

SPROCKET,43T

1шт.

4

86999007

PULLEY,335mm OD

1шт.

5

80535318

BUSHING

1шт.

Выбрано товаров: 6
