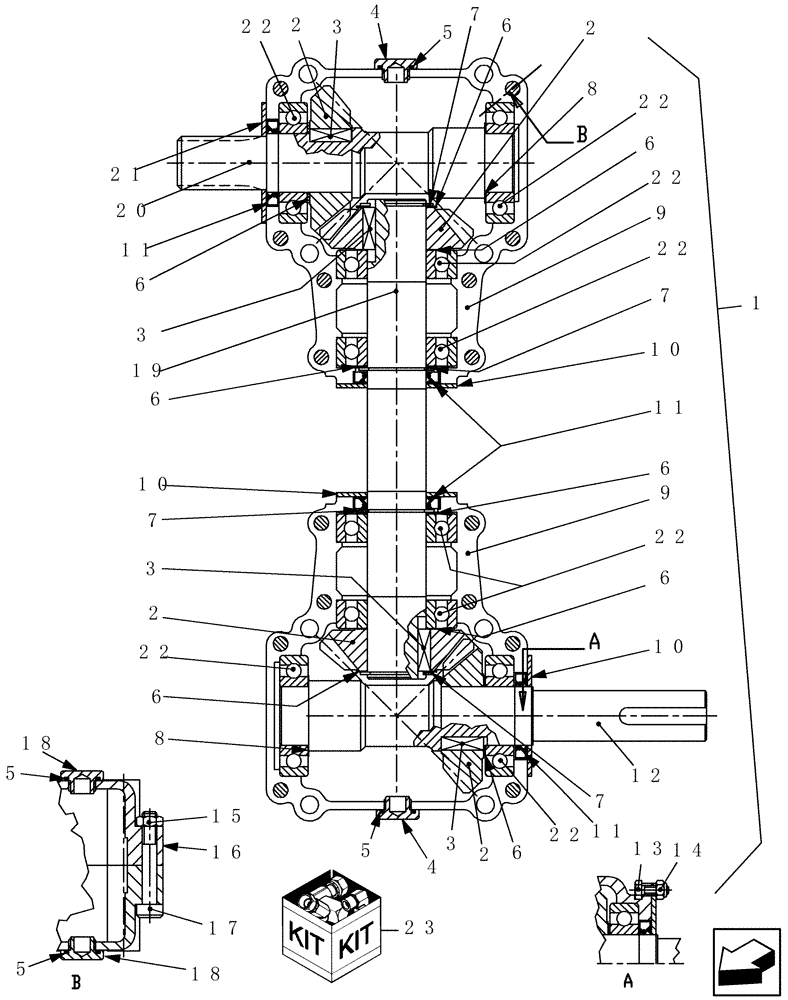

Запчасти Case IH 9010 (80.101.21) - BUBBLE-UP AUGER TANDEM GEARBOX (80) - CROP STORAGE/UNLOADING

1

86638425

GEARBOX

1шт.

86638425R

REMAN-GEARBOX

7010 (2/07-9/08), 8010 AXIAL-FLOW COMBINE - PIN HAJ200001 THRU HAJ204999 (9/06-9/08)

1шт.

86638425C

CORE-GEARBOX

Return Number

1шт.

2

87441215

BEVEL GEAR

Bevel, 18T

4шт.

3

368317

KEY,10mm x 8mm x 25mm

4шт.

4

87452540

DRAIN PLUG

2шт.

5

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

6шт.

6

87039409

SHIM,35mm ID x 45mm OD x 0.5mm Thk

8шт.

7

800-1135

SNAP RING,M35, Ext

4шт.

8

87039408

SHIM,35mm ID x 45mm OD x 0.3mm Thk

12шт.

9

87441214

HOUSING

2шт.

10

87281180

COVER PLATE

3шт.

11

87441213

OIL SEAL,35mm ID x 52mm OD x 7mm Thk

4шт.

12

87441212

SHAFT

Output

1шт.

13

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

14

832-46406

NUT,M6 x 1, Cl 8

8шт.

15

825-1408

NUT,M8, Cl 8

16шт.

16

87441211

HOUSING

Top Half

2шт.

17

864-8055

HEX SOC SCREW,M8 x 55mm, Cl 8.8

16шт.

18

87441210

PLUG

4шт.

19

87441209

SHAFT

1шт.

20

87441208

SHAFT

1шт.

21

87281170

COVER PLATE

30mm

1шт.

22

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

8шт.

23

87282026

SHIM

Kit; Services Refs 6 & 8

1шт.
