Запчасти Case IH 9010 (80.101.15) - ELEVATOR HOUSING AND DRIVES (80) - CROP STORAGE/UNLOADING

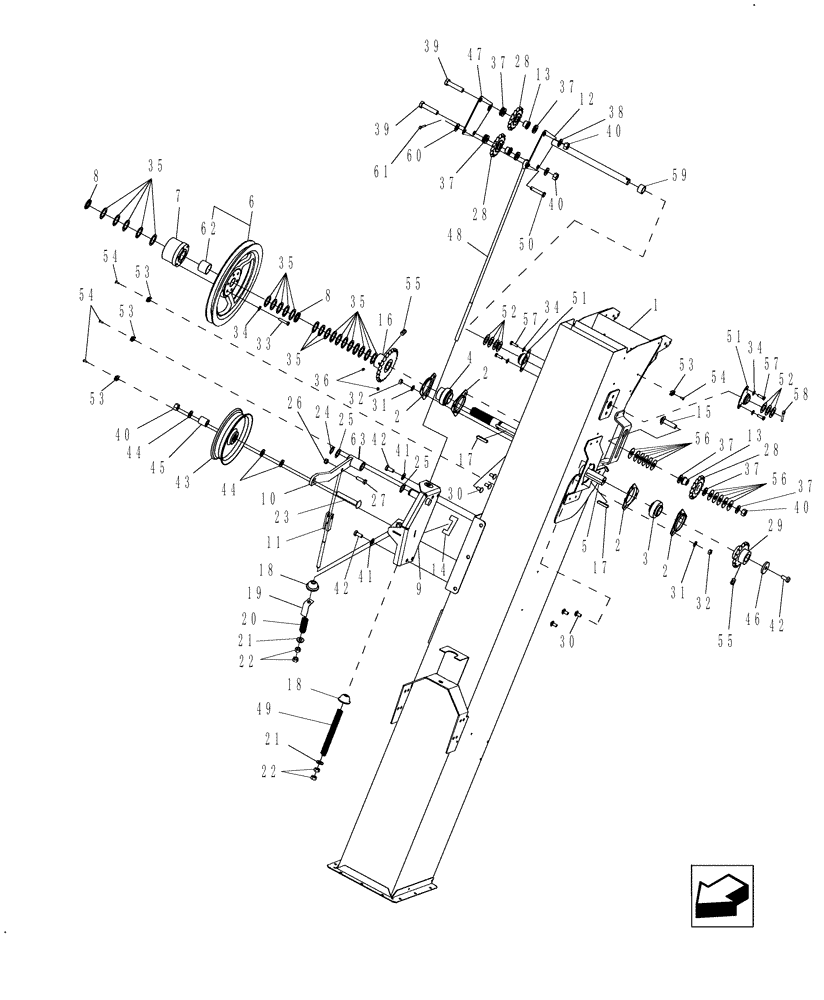

Схема запчастей Case IH 9010 - (80.101.15) - ELEVATOR HOUSING AND DRIVES (80) - CROP STORAGE/UNLOADING
37
13
40
40
2
25
14
55
27
37
57
34
40
34
63
37
25
20
39
22
48
51
31
3
49
39
47
53
35
37
28
41
28
7
22
32
17
53
2
21
54
30
19
43
44
16
42
11
8
45
6
56
13
60
24
35
33
52
34
2
18
37
53
4
37
53
18
59
41
36
23
30
54
31
51
28
2
1
46
50
15
9
32
21
10
35
38
54
26
58
52
8
62
29
40
57
17
12
42
44
55
61
5
42
35
56

Артикул

Название

Примечание

Количество

1

87586570

ELEVATOR

Housing; Includes: Decal 87283387 (1)

1шт.

1

87586569

ELEVATOR

Housing - Extended Wear; Includes: Decal 87283387 (1)

1шт.

2

86620026

FLANGED BEARING

TRIANGULAR

4шт.

3

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

4

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

4

87016482

SET SCREW,M10 x 10mm

1шт.

Not Shown

1шт.

5

87283680

SHAFT

1шт.

6

87000270

PULLEY

Includes: Ref 62

1шт.

7

87527860

CLUTCH ASSEMBLY

1шт.

8

851000

SNAP RING,1.276" ID x 0.172" Thk

2шт.

9

87108857

MOUNTING PLATE

1шт.

10

86999187

ARM

1шт.

11

86999557

ADJUSTMENT ROD

1шт.

12

87550645

SUPPORT ASSY.

1шт.

13

84334697

BUSHING,17mm ID x 32mm OD x 18.8mm L

Hub

3шт.

14

87719433

DECAL

Spring Adjustment

1шт.

PIN HAJ200257 & After

1шт.

15

120047

CARRIAGE BOLT,M16 x 70mm, Cl 8.8

1шт.

16

87283695

SPROCKET

1шт.

17

87283679

KEY,9.978mm W x 41.5mm OAL x 7.955mm Thk

2шт.

18

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

2шт.

19

84073601

INDICATOR

1шт.

20

681902

SPRING

.80 ID x 3.49

1шт.

21

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

22

9706685

NUT,M12 x 1.75, Cl 8

4шт.

23

322362

CARRIAGE BOLT,M16 x 100mm, Cl 8.8

1шт.

24

370002

CIRCLIP,M25, External

1шт.

25

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

2шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

27

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

28

87283101

SPROCKET,15T

3шт.

29

87731456

SPROCKET

W/Set Screw Hole

1шт.

30

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

6шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

32

100016

NUT,M10 x 1.5, Cl 8

6шт.

33

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

6шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

35

87280749

WASHER,35.05mm ID x 47.7mm OD x 2.8mm Thk

Flat

1шт.

36

380530

SET SCREW,Hex, M8 x 10mm

2шт.

37

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

14шт.

38

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

5шт.

39

120092

BOLT,M16 x 70mm, Cl 8.8

2шт.

40

825-1416

NUT,M16, Cl 8

4шт.

41

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

42

86553833

SCREW,M12 x 1.75 x 50mm, 10.9

1шт.

43

86588003

IDLER,51.6mm W x 228.6mm OD

1шт.

44

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

3шт.

45

86975913

SPACER,17.46mm ID x 30.16mm OD x 33mm L

1шт.

46

87280750

WASHER,13.49mm ID x 50.8mm OD x 6.35mm Thk

13.49mm ID x 50.8mm OD

1шт.

46

87284462

THRUST WASHER

Countersunk, 50mm OD

1шт.

47

87550634

PLATE ASSY.

1шт.

48

87108864

EYEBOLT

1шт.

49

87719432

SERVICE KIT

Elevator Tension; Includes: Refs 14 & 49

1шт.

Prior To PIN HAJ200257

1шт.

49

87719434

COIL SPRING

1шт.

PIN HAJ200257 & After

1шт.

50

84018348

CLEVIS PIN,M12 x 60mm OAL

1шт.

51

682452

FLANGED BEARING,25.46mm ID

2шт.

52

86624167

WASHER,25.81mm ID x 44.45mm OD x 0.91mm Thk

8шт.

53

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

4шт.

54

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

55

380530

SET SCREW,Hex, M8 x 10mm

2шт.

56

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

14шт.

57

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

58

9515820

COTTER PIN,M10.5 x 24mm OD x 3mm Thk

1шт.

59

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

1шт.

60

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

61

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

62

80535318

BUSHING

1шт.

63

420760

BUSHING,25mm ID x 28mm OD x 25mm L

2шт.

Выбрано товаров: 71
