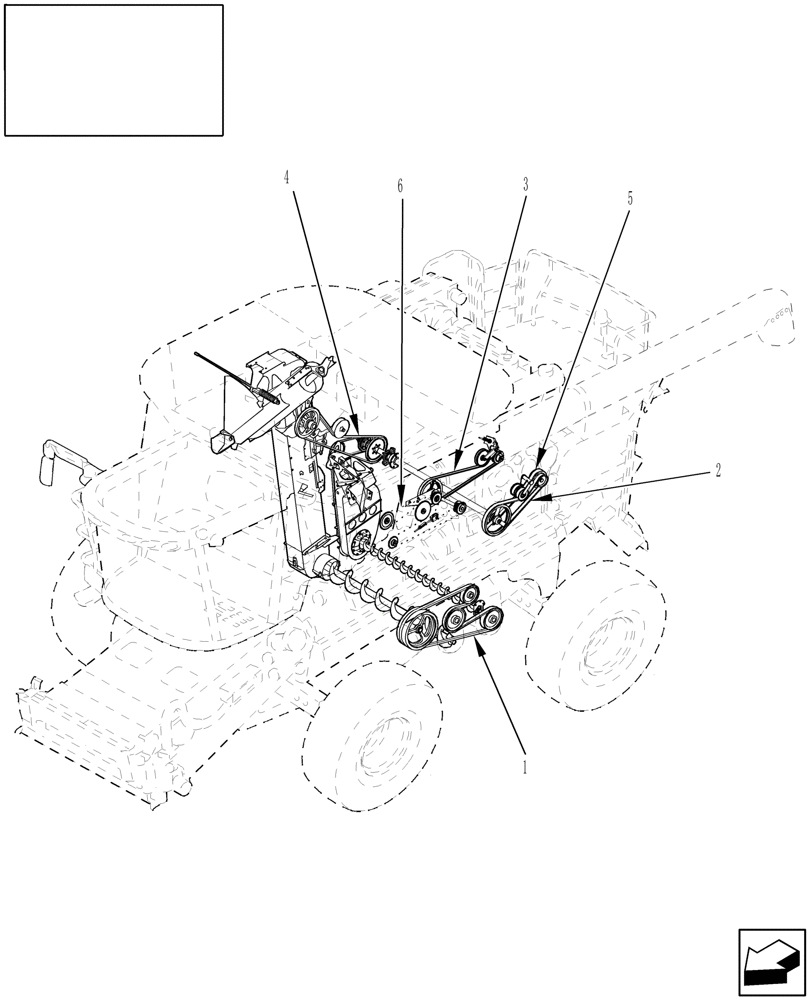

Запчасти Case IH 9010 (05.000.02[02]) - BELTS & CHAINS - LEFT SIDE - 9010 (05) - SERVICE & MAINTENANCE

1

87317063

V-BELT,3651mm Nominal Length x 22.33mm W

Shoe Drive

1шт.

2

86517680

V-BELT,3 Rib, 3045mm Nominal Length

Beater

1шт.

3

87011585

V-BELT,2HB, 38.1mm W x 3254mm L, 2 Ribs

Unloading Drive

1шт.

4

86975809

V-BELT,0.88" W x 1844.04mm Nominal Length

Bubble Up Drive, 86975809

1шт.

5

86976208

V-BELT,3 Rib, 2720mm Nominal Length

Strawchopper Drive

1шт.

6

86998066

CHAIN,60H, 284 Links x 19.05mm = 5410.2mm

Unloading Drive

1шт.

6

87680581

CHAIN,60H, 288 Links x 19.05mm = 5486.4mm

Unloading Drive; Service Only - Slow Down Drive For Rice Harvest

1шт.
