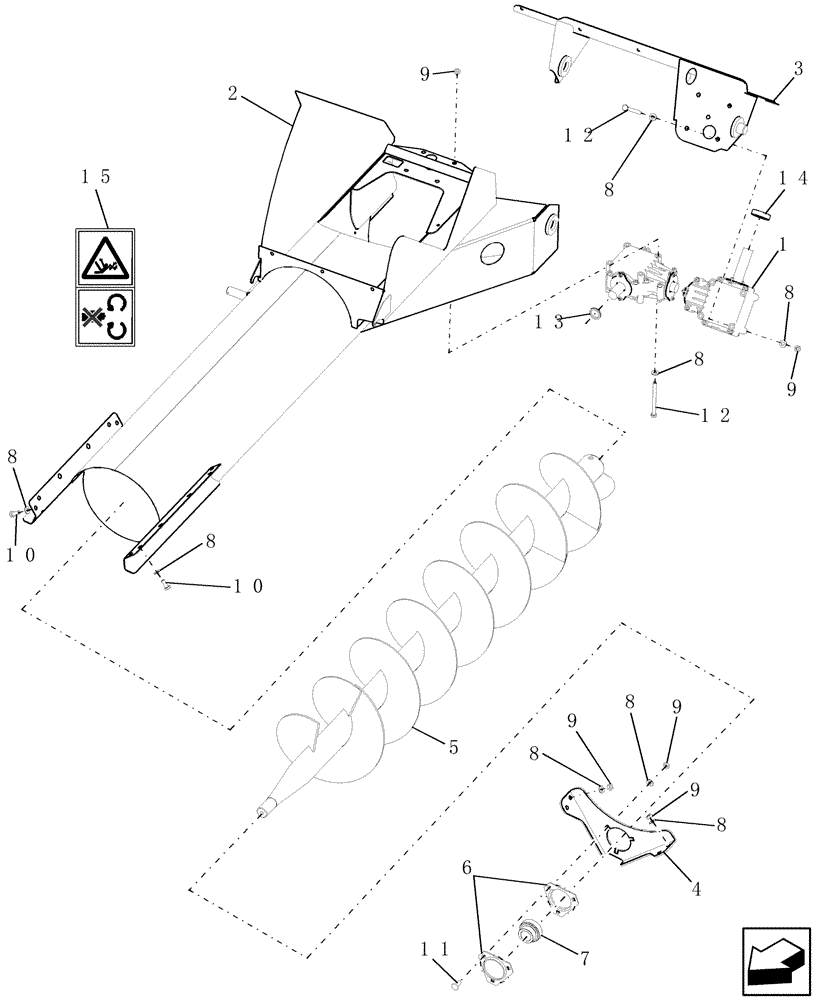

Запчасти Case IH 9010 (80.101.10[01]) - BUBBLE-UP AUGER - 9010 (80) - CROP STORAGE/UNLOADING

1

86638425

GEARBOX

1шт.

This Is a Tandem Assembly; Part Includes Both Gearboxes Shown

1шт.

2

87668036

SERVICE KIT

Std, Low Pf; Includes: Ref 15

1шт.

2

87668037

SERVICE KIT

Extended Wear, Low Pf; Includes: Ref 15

1шт.

3

87617907

SUPPORT

1шт.

4

86998682

BRACKET

1шт.

5

87106625

AUGER

Std & Extended Wear, Low Pf., L = 1842 mm

1шт.

6

86620026

FLANGED BEARING

2шт.

7

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

7

87016482

SET SCREW,M10 x 10mm

1шт.

Not Shown

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

23шт.

9

100016

NUT,M10 x 1.5, Cl 8

15шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

12

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

8шт.

13

87280933

SEAL,28.96mm ID x 37.08mm OD x 7.62mm Thk

1шт.

14

87282653

SEAL,38mm ID x 68mm OD x 32mm Thk

1шт.

15

84004736

DANGER DECAL

Never Reach Into Rotating Auger

1шт.
