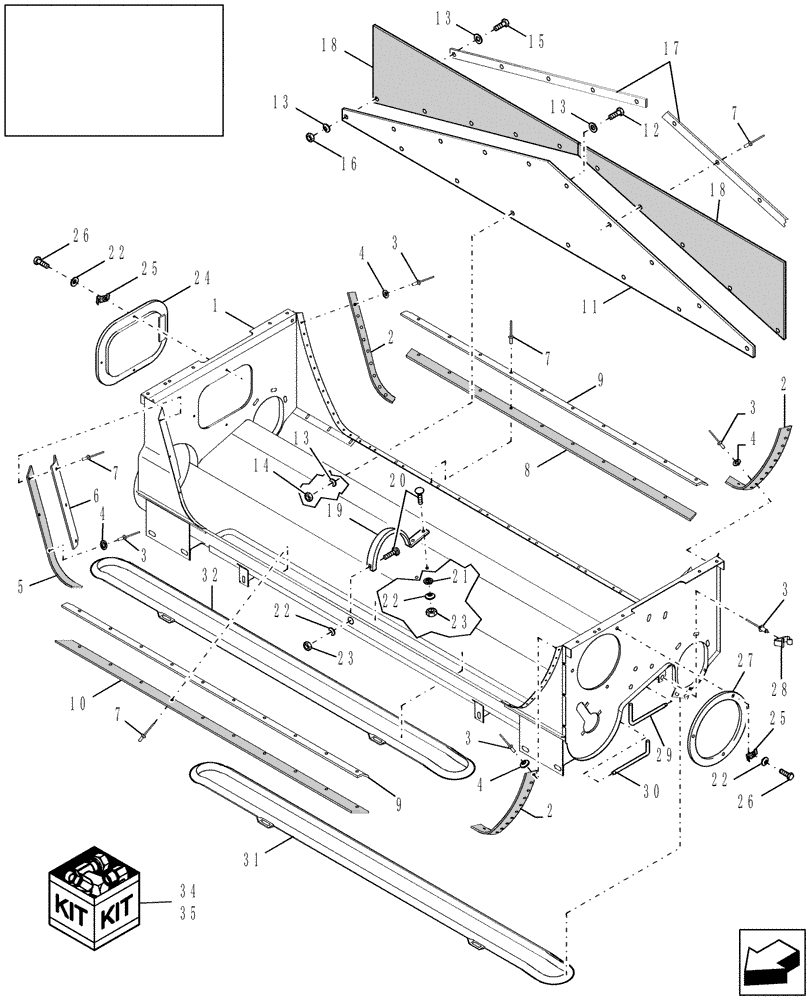

Запчасти Case IH 9010 (74.140.14[02]) - SELF-LEVELING AUGER HOUSING, MAIN BODY - 9010 (74) - CLEANING

1

87380544

HOUSING

Auger

1шт.

7010 Only

1шт.

1

87044524

HOUSING

Auger

1шт.

8010 Only

1шт.

2

87282881

SEAL PROTECTION

3шт.

3

80445394

RIVET

M5 x 15

52шт.

4

80140182

WASHER

M5

48шт.

5

87282880

SEAL

1шт.

6

84320082

SLAT

Seal

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

M4.8 x 16

1шт.

8

80442793

SEAL,50mm W x 1003mm L

1шт.

7010 Only

1шт.

8

80451792

SEAL

1шт.

8010 Only

1шт.

9

84320081

SLAT

Seal

2шт.

7010 Only

1шт.

9

84320089

STRIP

Seal

2шт.

8010 Only

1шт.

10

80428401

SEALING ELEMENT

1шт.

7010 Only

1шт.

10

80451794

SEAL

1шт.

8010 Only

1шт.

11

87696060

MOUNTING PLATE

1шт.

7010 Only

1шт.

11

87696056

MOUNTING PLATE

1шт.

8010 Only

1шт.

12

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

7010 (14), 8010 (16)

1шт.

13

80412649

LOCK WASHER

7010(48), 8010 (56)

1шт.

14

9706755

NUT,M6, Cl 8

7010(14), 8010 (16)

1шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

16

353308

NUT,M6 x 1.0, Cl 8

7010 (10), 8010 (12)

1шт.

17

84320085

PLATE

Seal

2шт.

7010 Only

1шт.

17

84320079

STRIP

Seal

2шт.

8010 Only

1шт.

18

87552400

SEAL PROTECTION

2шт.

7010 Only

1шт.

18

87552399

SEAL PROTECTION

2шт.

8010 Only

1шт.

19

84072271

SUPPORT

1шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

21

80140041

WASHER

M8

2шт.

22

80412650

WASHER

M8

9шт.

23

9706690

NUT,M8 x 1.25, Cl 8

3шт.

24

84320078

DOOR

1шт.

25

80425093

CLIP

6шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

27

84320087

DOOR

1шт.

28

80323307

SPRING CLIP

4шт.

29

89819720

PIN

2шт.

30

89819719

PIN

2шт.

31

84078027

COVER

Return Tailings, STD

1шт.

31

84429238

COVER

Return Tailings, Round Holes

1шт.

31

740667

COVER

Return Tailings, Slotted Holes

1шт.

32

87693856

COVER

Clean Grain, Reinforced

1шт.

32

84429240

COVER

Clean Grain, Round Holes

1шт.

32

740666

COVER

Clean Grain, Slotted Holes

1шт.

32

87283418

COVER

Hard Threshing - Included in Kits 84083561, 87743232, & 87743231

1шт.

33

134577

CLIP,J

3шт.

34

84084680

COVER

Round Hole Perforated; Includes: Refs 31 & 32, As Indicated

1шт.

35

84083561

DIA KIT, HARVESTER

Hard Thresh Tailings; Includes: Ref 32, As Indicated

1шт.

Prior To 4/08

1шт.

35

87743232

DIA KIT, HARVESTER

Hard Thresh Tailings; Includes: Ref 32, As Indicated

1шт.

4/08 & After

1шт.

35

87743231

DIA KIT, HARVESTER

Hard Thresh Tailings; Includes: Ref 32, As Indicated

1шт.

4/08 & After

1шт.
