Запчасти Case IH 9010 (74.140.09[02]) - TAILINGS DRIVE AND AUGER - 9010 (74) - CLEANING

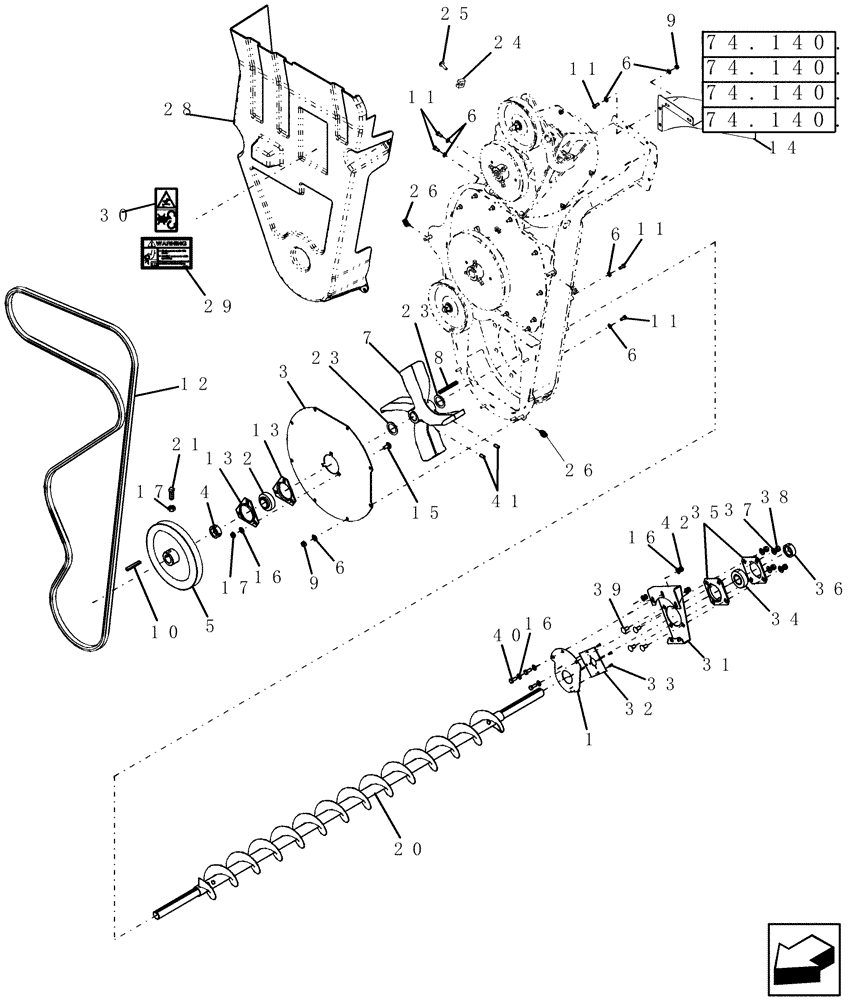

Схема запчастей Case IH 9010 - (74.140.09[02]) - TAILINGS DRIVE AND AUGER - 9010 (74) - CLEANING
20
38
8
21
33
2
37
6
9
6
6
7
35
23
16
74.140.05(01)
13
3
11
17
11
16
23
31
13
36
24
29
28
16
74.140.05(03)
39
42
6
32
26
1
74.140.05(04)
74.140.05(02)
40
11
17
4
5
10
9
34
15
41
11
14
12
30
26
6
25

Артикул

Название

Примечание

Количество

1

87574415

COVER

Bracket, L.H., Tailings Bearing Mount

1шт.

2

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

3

87109655

PLATE

Bearing Cover, Tailings Processor

1шт.

4

86997053

COLLAR

1шт.

5

87282789

PULLEY,299.9mm OD

Driven, Tailings - Includes (3) Ref 17 & (3) Ref 21

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

31шт.

7

87549450

BLOWER

Coated

1шт.

8

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

Retaining

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

14шт.

10

86996914

KEY

Retaining, M10 x 8 x 75

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

17шт.

12

87283139

V-BELT,4622.8mm Nominal Length

Tailings Processor, HCC

1шт.

13

86620026

FLANGED BEARING

2шт.

14

87339975

DEFLECTOR

1шт.

Prior To 4/08

1шт.

14

87735231

DEFLECTOR

1шт.

4/08 & After

1шт.

15

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

17

100016

NUT,M10 x 1.5, Cl 8

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

20

87573645

AUGER

Std Wear

1шт.

20

87730185

AUGER

Extended Wear

1шт.

21

393599

SET SCREW,M10 x 25mm, Cl 12.9

1шт.

23

87109160

SHIM,35.5mm ID x 58mm OD x 2.18mm Thk

2шт.

25

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

26

87109290

LOCK PIN,25.4mm OD x 30mm L

3шт.

28

87109865

SHIELD

Includes Refs 29 & 30

1шт.

29

86626958

WARNING DECAL

English

1шт.

30

84004734

WARNING DECAL

Safety

1шт.

31

87542571

SUPPORT

1шт.

32

87528798

SEAL

1шт.

33

9512968

RIVET,Pop, 4.8mm OD x 11.2mm L

4шт.

34

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

1шт.

35

86974037

FLANGE

2шт.

36

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

1шт.

37

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

38

337475

NUT,M12, Cl 10

4шт.

39

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

40

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

41

84814918

SET SCREW,M8 x 12mm, Cl 8.8

2шт.

42

86500689

NUT,M10 x 1.5, Cl 10

3шт.

Выбрано товаров: 43
