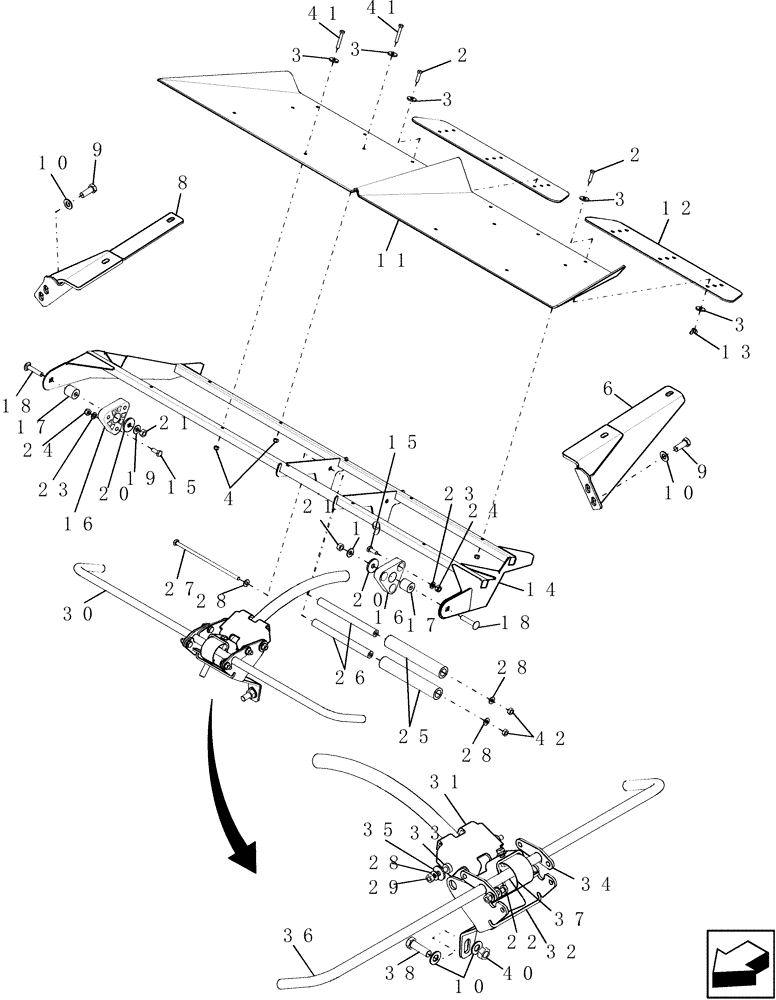

Запчасти Case IH 9010 (74.135.05[01]) - OSCILLATING CHAFFER PAN - 8010/9010 (74) - CLEANING

2

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

3

80140041

WASHER

M8

20шт.

4

9628098

NUT,M8 x 1.25, Cl 10

8шт.

6

87281225

BRACKET

L.H.

1шт.

8

87281226

BRACKET

R.H.

1шт.

9

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

10

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

11

87000126

SHEET

1шт.

12

87000125

SHEET

2шт.

13

84807781

WING NUT,M8

6шт.

14

87108990

FRAME

1шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

16

87105202

BUSHING

2шт.

17

87000413

BUSHING,12.7mm ID x 31.75mm OD x 32mm L

Plated

2шт.

18

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

20

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

21

100038

NUT,M12 x 1.75, Cl 8

2шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.

23

80140017

WASHER

M10

6шт.

24

86512554

NUT,M10 x 1.5, Cl 10

6шт.

25

NS

NOT SERVICED

Roller

2шт.

When Replacement Is Necessary, Must Install Chaffer Pan Upgrade Kit

1шт.

26

NS

NOT SERVICED

Bushing

2шт.

When Replacement Is Necessary, Must Install Chaffer Pan Upgrade Kit

1шт.

27

412004

BOLT,Hex, M10 x 1.5 x 260mm, Cl 8.8

2шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

29

100016

NUT,M10 x 1.5, Cl 8

7шт.

30

86999517

SUPPORT

1шт.

31

NS

NOT SERVICED

Bracket

1шт.

When Replacement Is Necessary, Must Install Chaffer Pan Upgrade Kit

1шт.

32

86999506

BRACKET

1шт.

33

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

2шт.

34

86999529

PLATE

2шт.

35

80140042

WASHER

M10

2шт.

36

86999516

LATCH

1шт.

37

86638213

SPRING

1шт.

38

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

40

825-1416

NUT,M16, Cl 8

1шт.

41

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

8шт.

42

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
