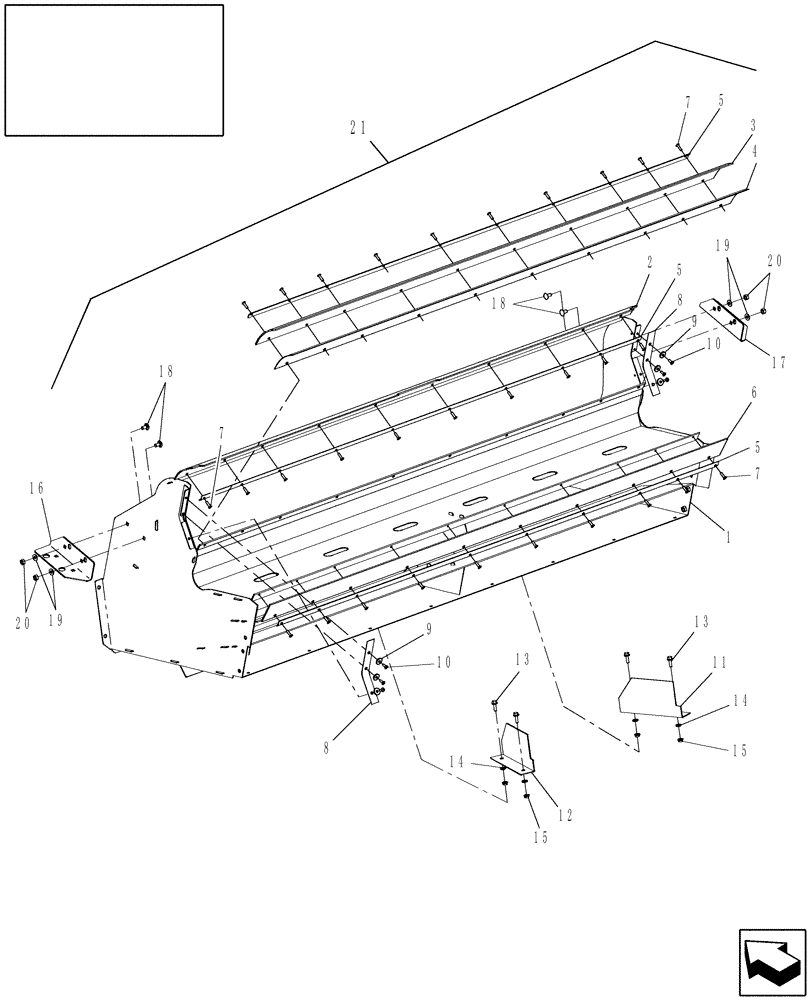

Запчасти Case IH 9010 (74.130.08[01]) - HOUSING, FAN - 9010 (74) - CLEANING

1

87535853

HOUSING

Fan

1шт.

2

87361668

SEAL

1шт.

3

84462407

SEAL PROTECTION

1шт.

4

84462409

SEAL PROTECTION

1шт.

5

747558

STRIP

3шт.

6

84818312

SEAL

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

30шт.

8

84071827

CANVAS

2шт.

9

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

6шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

11

87109364

DEFLECTOR

RH

1шт.

12

87109363

DEFLECTOR

LH

1шт.

13

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

16

87541857

SUPPORT

1шт.

17

87541859

SUPPORT

1шт.

18

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

87318136

HOUSING

Includes: Refs 1 Thru 20, As Indicated

1шт.
