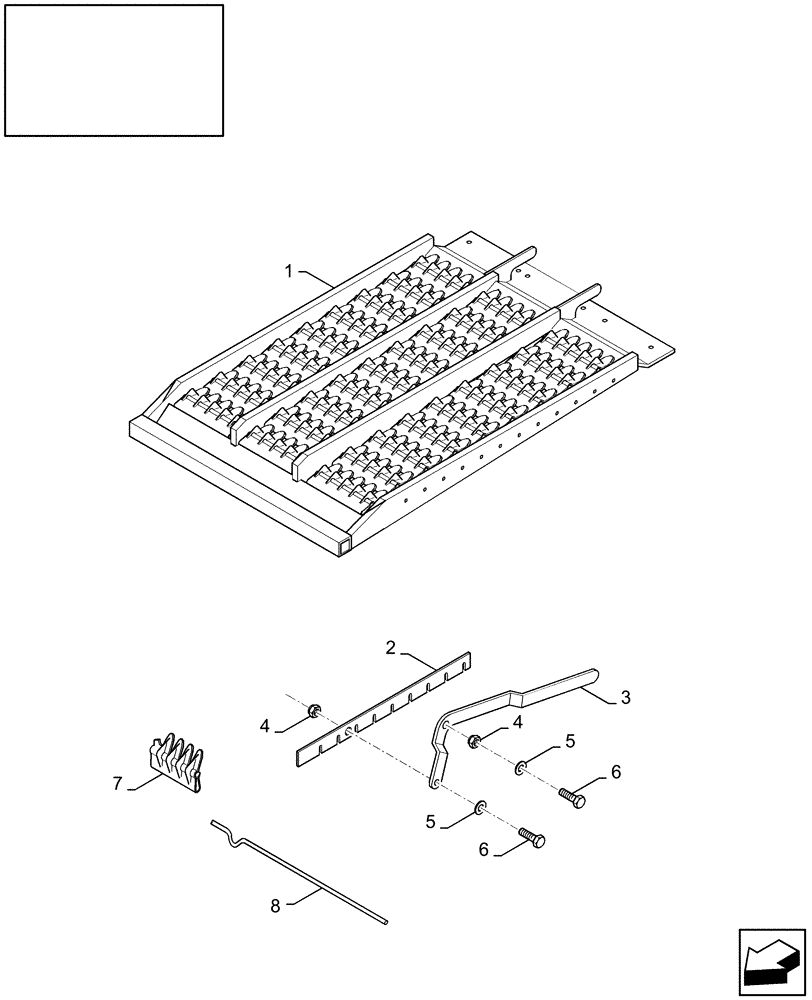

Запчасти Case IH 9010 (74.114.04[02]) - PRESIEVE - 8010/9010 (74) - CLEANING

1

87109817

GRAIN SIEVE

1-1/8" - Galvanized

1шт.

1

84076561

SIEVE

1-1/8" - Painted

1шт.

1

87105820

SIEVE

1-5/8"

1шт.

1

87109826

SIEVE

CL 1-5/8" - Galvanized

1шт.

1

87109821

SIEVE,1-5/8"

Corn, Galvanized Slats

1шт.

1

84432132

SIEVE

Corn, H-C

1шт.

For EU Only

1шт.

2

NS

NOT SERVICED

Plate

1шт.

3

84434245

LEVER

1шт.

4

353308

NUT,M6 x 1.0, Cl 8

2шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

481730

BAR

L = 230MM

40шт.

7

445571

BAR

L = 240MM

80шт.

7

87281019

BAR

SLAT, Corn, Galvanized - L = 233MM

28шт.

7

87281020

BAR

SLAT, Corn, Galvanized - L = 240.5MM

56шт.

8

452791

RETAINING WIRE

20шт.

8

NS

NOT SERVICED

WIRE, Corn, Galvanized Slats

14шт.
