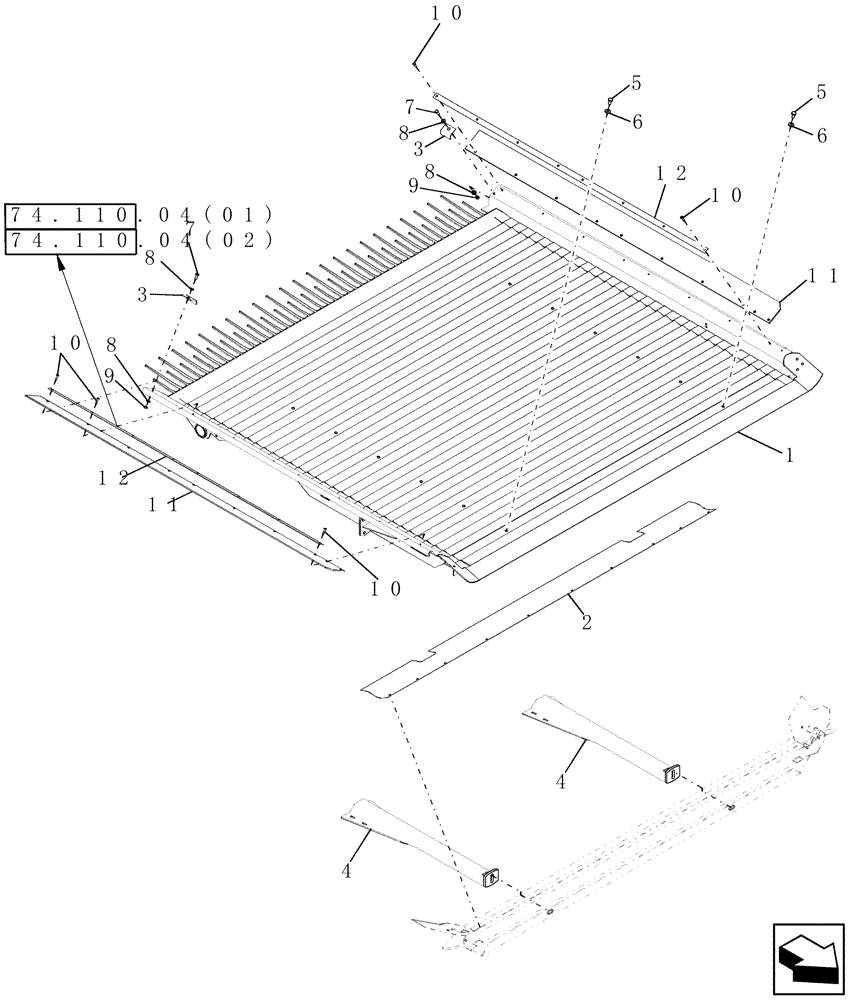

Запчасти Case IH 9010 (74.101.16[02]) - UPPER SHOE DRIVE, R.H. - 9010 (74) - CLEANING

1

87585352

CANVAS,90mm W x 1985mm OAL

2шт.

2

84446204

RIVET,Pop, 6.28mm OD x 19.5mm L

18шт.

3

NS

NOT SERVICED

Rivet

4шт.

4

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

5

80300810

BOLT,M12 x 1.75 x 85mm, Cl 8.8

4шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

18шт.

7

84446877

BEARING HOUSING

6шт.

8

442446

RUBBER BUSHING,28mm ID x 52mm OD x 54mm L

4шт.

9

84037184

SHAFT,33mm OD x 96mm L

4шт.

10

9811082

BUSHING,52mm ID

1шт.

11

87314573

ARM

R.H.

1шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

13

9706685

NUT,M12 x 1.75, Cl 8

5шт.

14

84334453

SUPPORT

R.H.

1шт.

15

43154

SEALING RING COLLAR

M12 x 40

4шт.

16

84320472

SUPPORT

R.H.

1шт.

16

84320470

SUPPORT

L.H.

1шт.

17

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

19

9501756

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

20

445473

SHIM,30mm OD x 0.99mm Thk

THK.: 1MM

1шт.

21

445474

SHIM,30mm OD x 0.68mm Thk

THK.: 0.5MM

1шт.

22

445472

PLATE

1шт.

23

84989436

RAKE

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

25

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

1шт.

26

9706690

NUT,M8 x 1.25, Cl 8

1шт.

27

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

28

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

2шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

31

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

87323178

DIA KIT, HARVESTER

Includes: Refs 1, 11

1шт.
