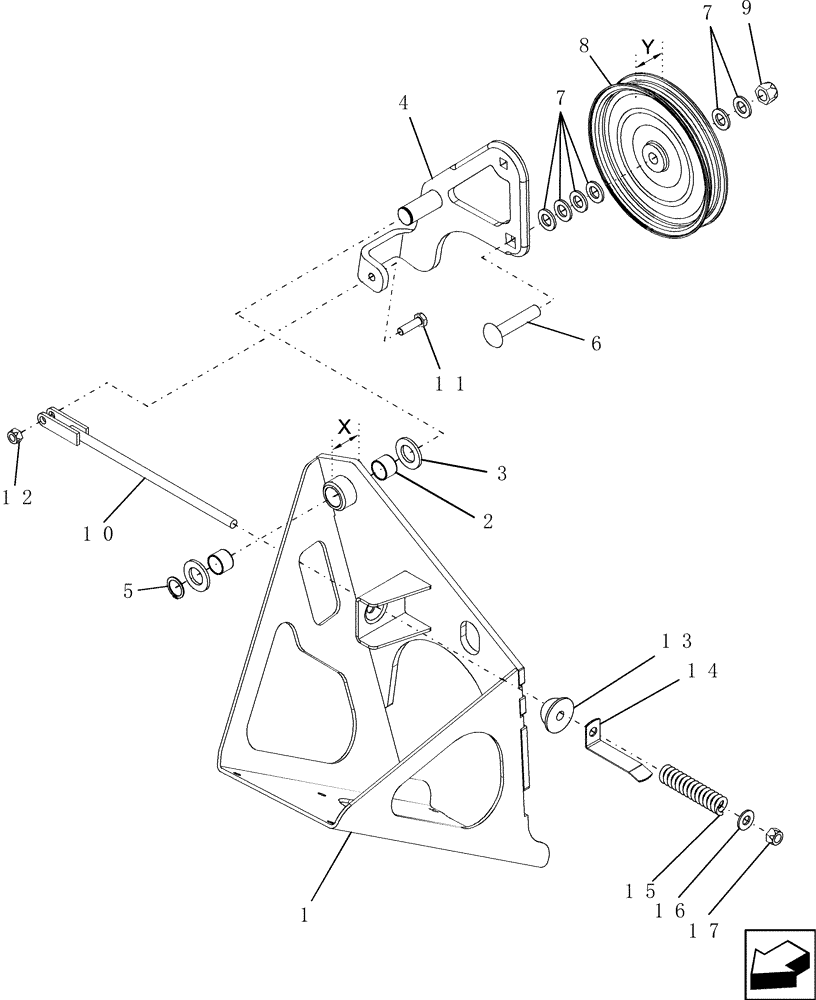

Запчасти Case IH 9010 (74.101.05[02]) - TENSIONER - 9010 (74) - CLEANING

1

87640473

BRACKET

Hub Length (X) = 75.3mm

1шт.

Check Hub Length (X): If X = 40.3 mm Instead Of 75.3 mm, Then Arm - Ref 4, Sleeves - Ref 2, Pulley - Ref 8 & Bracket - Ref 1, Must Be replaced As a Set

1шт.

2

84057311

BUSHING,25mm ID x 28mm OD x 20mm L

Length = 20mm

2шт.

2

395589

BUSHING,25mm ID x 28mm OD x 30mm L

Length = 30mm

2шт.

3

86511328

WASHER,25mm ID x 44mm OD x 4mm Thk

3шт.

4

87640479

LEVER

Idler

1шт.

Check Hub Length (X): If X = 40.3 mm Instead Of 75.3 mm, Then Arm - Ref 4, Sleeves - Ref 2, Pulley - Ref 8 & Bracket - Ref 1, Must Be replaced As a Set

1шт.

5

370002

CIRCLIP,M25, External

1шт.

6

120048

CARRIAGE BOLT,M16 x 80mm, Cl 8.8

1шт.

7

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

7шт.

8

86976165

IDLER,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

Idler; Width (Y) = 30mm

1шт.

8

86588003

IDLER,51.6mm W x 228.6mm OD

Width (Y) = 51mm

1шт.

9

86000441

NUT,M16 x 2.0, Cl 8

1шт.

10

86587035

ROD

Tensioner

1шт.

11

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

13

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

1шт.

14

84057943

INDICATOR

1шт.

15

84814905

SPRING

1шт.

16

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

17

100038

NUT,M12 x 1.75, Cl 8

1шт.
