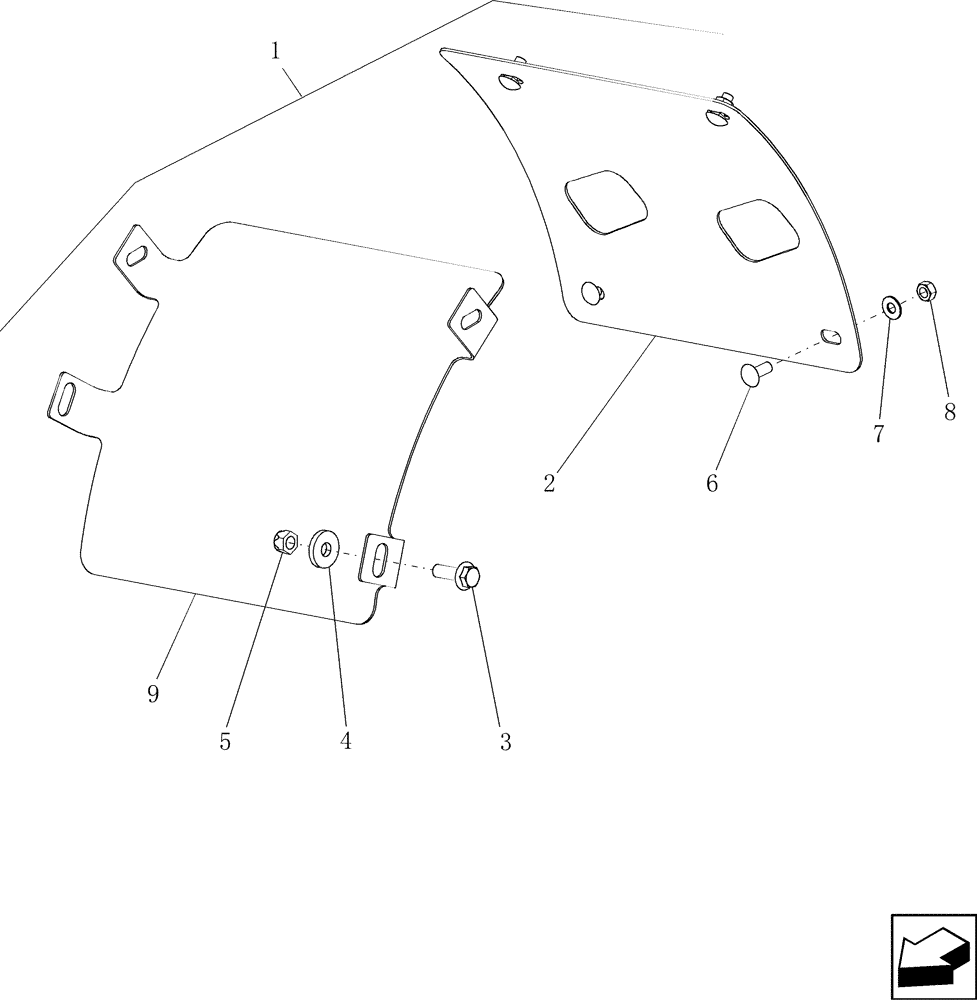

Запчасти Case IH 9010 (66.360.11) - KIT, FRONT FILLER PLATE, ROTOR CAGE (66) - THRESHING

1

87584185

SERVICE KIT

Front Filler Plate; Includes: Refs 2 Thru 9

1шт.

2

87584187

COVER

L.H.

1шт.

3

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

1шт.

4

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

1шт.

5

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

86500689

NUT,M10 x 1.5, Cl 10

4шт.

9

87584186

COVER

R.H.

1шт.
