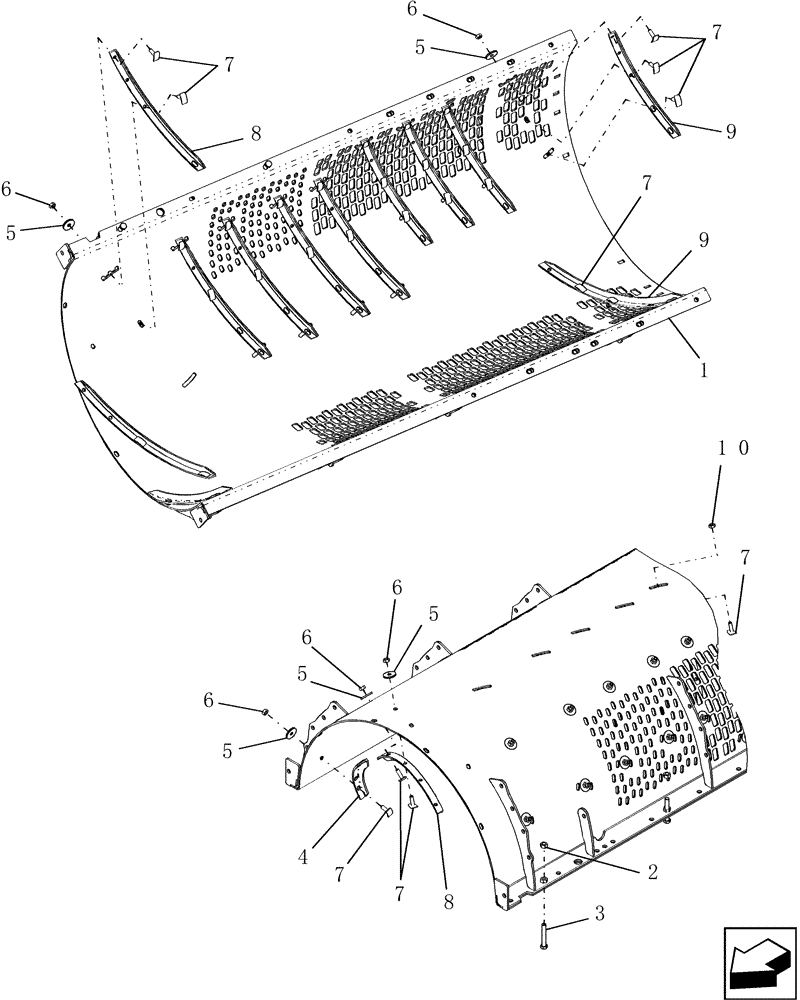

Запчасти Case IH 9010 (66.360.10[02]) - ROTOR CAGE - 9010 (66) - THRESHING

1

87391297

KIT

Extended Wear

1шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

161441

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8, Full Thd

2шт.

4

87107892

ANGLE

1шт.

5

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

28шт.

6

100016

NUT,M10 x 1.5, Cl 8

28шт.

7

87106338

BOLT

33шт.

8

87341038

STIFFENER

VANE

5шт.

9

87717923

VANE

VANE

6шт.

10

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

5шт.
