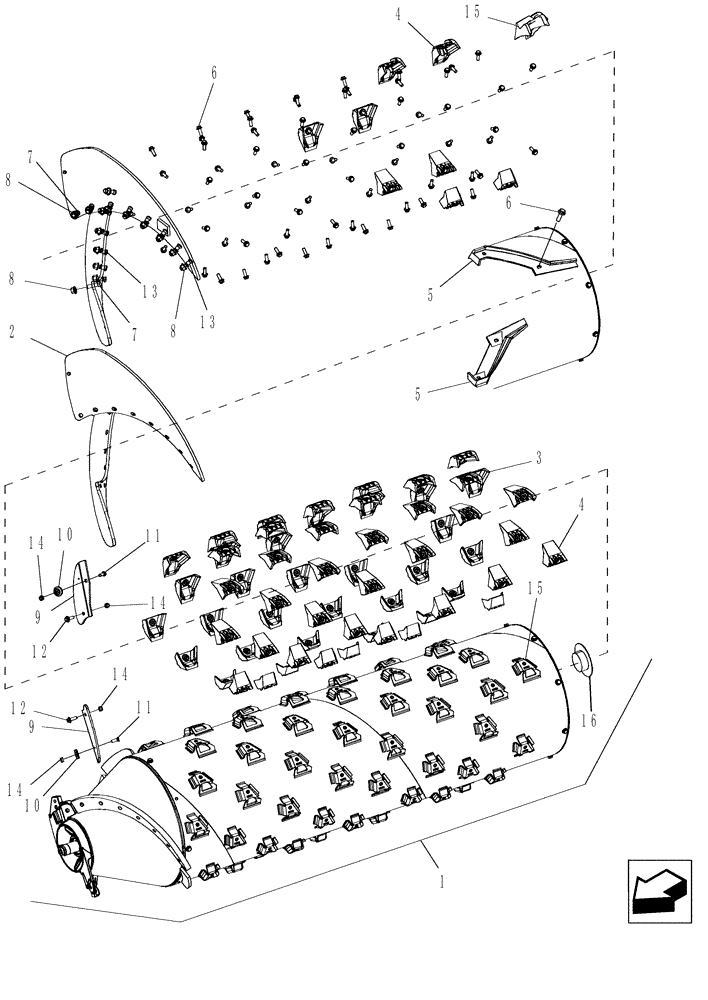

Запчасти Case IH 9010 (66.330.01[02]) - ROTOR - 9010 (66) - THRESHING

1

87620394

ROTOR ASSY.

Small Grain, Abrasion Resistant

1шт.

Small Tube

1шт.

2

NSS

NOT SOLD SEPARAT

Flighting, Auger; Must Order Kit 87715003

2шт.

3

87368806

RASP BAR

With Spike, Hardened

8шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

4

87368807

RASP BAR

Extended Wear, Small Grain, Abrasion Resistant, , W/O Spike, 28 Degree

28шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

5

87602594

RASP BAR

Straight Bar, Separator; Service Only

8шт.

6

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

38шт.

7

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

2шт.

8

86512380

FLANGE NUT,M16

14шт.

9

87376702

KIT

Blade

1шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

10

87315598

SHIELD

2шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

11

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

10шт.

12

87601297

SUPPORT ASSY.

36шт.

13

87394282

PLOW BOLT,M16 x 55mm, Cl 10.9

12шт.

14

412672

NUT,Hex, M12 x 1.75, Cl 10

12шт.

15

87281664

SUPPORT

Large Tube

1шт.

15

87601297

SUPPORT ASSY.

Small Tube

40шт.

16

87697368

PLASTIC PLUG

Plastic Plug

1шт.

17

87602594

RASP BAR

8шт.
