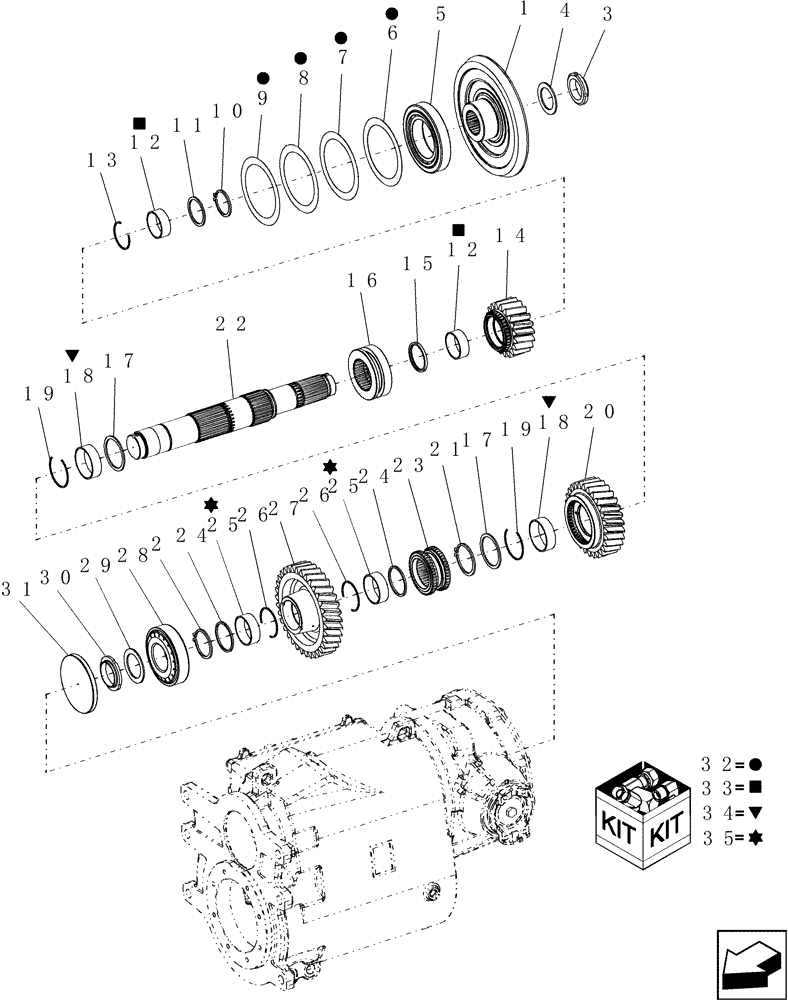

Запчасти Case IH 9010 (66.260.25[02]) - TRANSFER SHAFT & GEARS, ROTOR GEARBOX - 9010 (66) - THRESHING

1

87280570

GEAR SET

Bevel

1шт.

This Is Half of The Gear Set, The Other Half Is Shown One Fig Back

1шт.

1

87688722

GEAR SET,Bevel, 41 Tooth/18 Tooth

Bevel, For Gearbox 876963901

1шт.

This Is Half of The Gear Set, The Other Half Is Shown One Fig Back

1шт.

2

800-5155

SNAP RING,M55 x 3mm Thk, External

Retaining, External

2шт.

3

87031062

BEARING LOCK NUT,M45 x 1.5

Stake

1шт.

4

87281243

THRUST WASHER

1шт.

5

87280579

BEARING ASSY,80mm ID x 140mm OD x 28.25mm W

1шт.

6

87033548

SHIM,110mm ID x 140mm OD x 0.5mm Thk

0.50

1шт.

7

87033546

SHIM,110mm ID x 140mm OD x 0.3mm Thk

0.30

1шт.

8

87033545

SHIM,110mm ID x 140mm OD x 0.15mm Thk

0.15

1шт.

9

87033544

SHIM,110mm ID x 140mm OD x 0.1mm Thk

0.10

1шт.

10

800-5150

SNAP RING,M50, Ext

External

1шт.

11

87282464

THRUST WASHER

1шт.

12

87280990

NEEDLE BEARING,50 mm ID x 55 mm OD x 20 mm

Needle, Roller

2шт.

12

87280994

NEEDLE BEARING,55mm ID x 60mm OD x 20mm Thk

Roller, For Gearbox 87696391

4шт.

13

87280997

SNAP RING

1шт.

14

87280580

GEAR

Driver

1шт.

14

87684701

GEAR

Driver, 1st, 19T, Gearbox 87696391, Start Year: 01-MAR-09

1шт.

15

87280958

THRUST WASHER

1шт.

16

87282384

COLLAR,31T / 38T

Shift, 1st Gear

1шт.

17

87282385

THRUST WASHER

2шт.

18

87280992

NEEDLE BEARING,60 mm ID x 65 mm OD x 20 mm

2шт.

19

87280999

SNAP RING,60mm ID x 65mm OD x 20mm Thk

2шт.

20

87282386

GEAR

2nd, 28T

1шт.

21

800-5160

SNAP RING,M60, Ext

External

1шт.

22

87282387

SHAFT

Intermediate

1шт.

22

87684680

SHAFT

Intermediate for Gearbox 87696391, Start Year: 01-MAR-09

1шт.

23

87280583

COLLAR,28T Internal / 40T External

Shift, 2nd & 3rd Gear

1шт.

24

87282496

THRUST WASHER

2шт.

25

87280994

NEEDLE BEARING,55mm ID x 60mm OD x 20mm Thk

2шт.

26

87280998

SNAP RING,59.9mm ID x 1.5mm Thk, Internal

Internal

2шт.

27

87282497

GEAR

3rd, 34T

1шт.

27

87684677

GEAR

3rd, 34T, Gearbox 87696391, Start Year: 01-MAR-09

1шт.

28

86509784

BEARING ASSY,55mm ID x 120mm OD x 31.5mm W

1шт.

29

87031063

THRUST WASHER

1шт.

30

87020897

BEARING LOCK NUT,M50 x 1.5

Stake

1шт.

31

375413A1

CAP

Cover

1шт.

32

87743037

SHIM KIT

1шт.

33

87282439

NEEDLE BEARING,50 mm ID x 55 mm OD x 20 mm

1шт.

34

87282440

KIT,60 mm ID x 65 mm OD x 20 mm

1шт.

35

87282441

KIT,55 mm ID x 60 mm OD x 20 mm

1шт.
