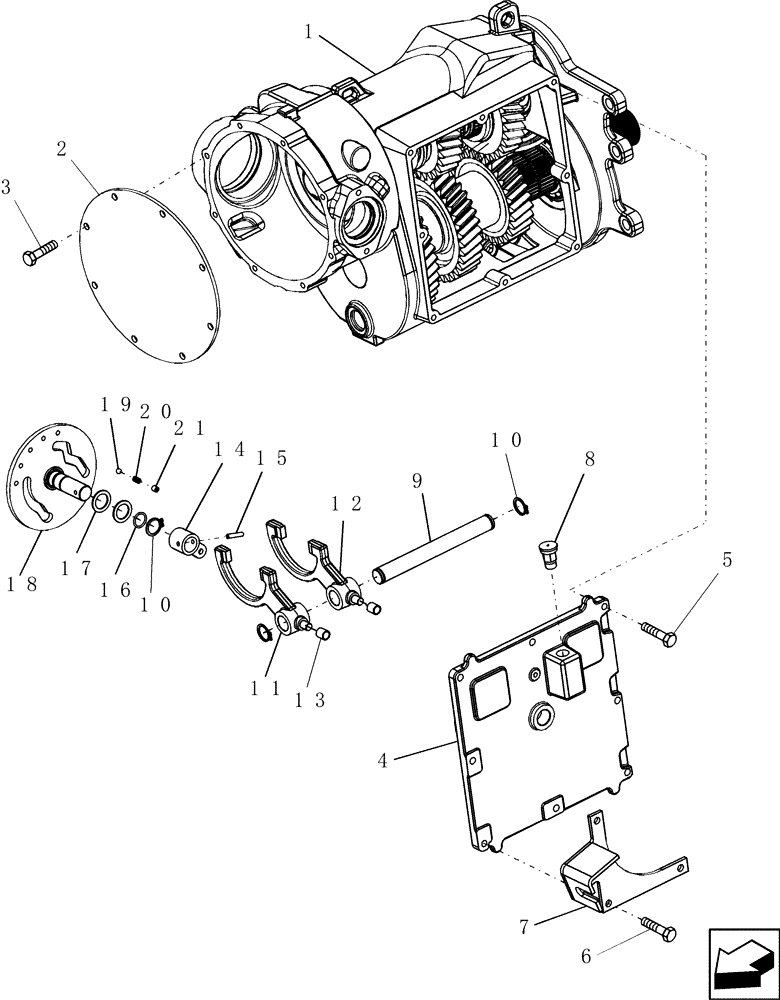

Запчасти Case IH 9010 (66.260.17[02]) - SHIFTING COMPONENTS, ROTOR GEARBOX - 9010 (66) - THRESHING

1

87282569

HOUSING

1шт.

2

87280569

COVER

Rear

1шт.

3

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

8шт.

4

87280566

COVER

Side

1шт.

5

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

6

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

7

87280961

BRACKET

Shift Cable

1шт.

8

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

1шт.

9

87280505

SHIFT RAIL

1шт.

10

800-5125

CIRCLIP,M25, External

3шт.

11

87280503

SHIFTER FORK

1шт.

12

87281245

SHIFTER FORK

2ND & 3RD Gear

1шт.

13

87281117

BUSHING,12mm ID x 15mm OD x 16.5mm L

2шт.

14

87280568

LEVER

1шт.

15

838-3630

PIN,M6 x 30, Coiled

1шт.

16

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

17

87034239

WASHER,25mm ID x 36mm OD x 2mm Thk

With Plate 87280506(2), 87719018(1)

1шт.

18

87280506

CAM

PLATE, Years: -01-DEC-07

1шт.

18

87719018

PLATE ASSY.

Cam, Start Year: 01-JAN-08

1шт.

19

211-1010

BALL,5/16" OD

1шт.

20

87281285

SPRING

Compression

1шт.

21

878-10810

SET SCREW,M8 x 10mm

1шт.
