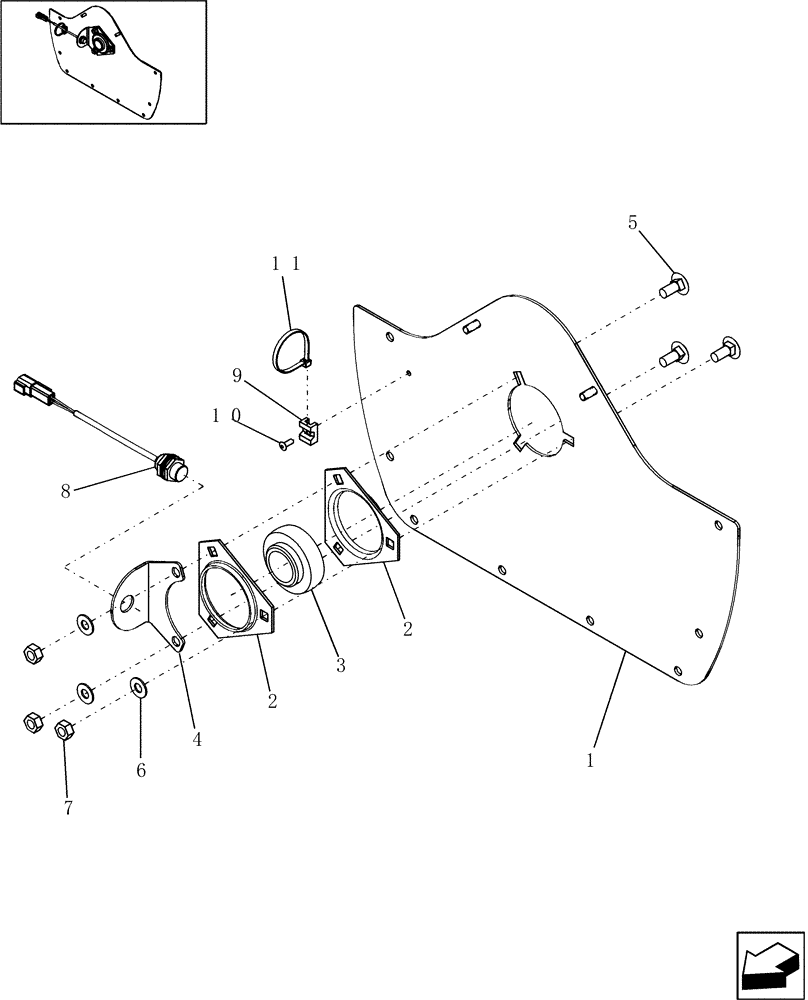

Запчасти Case IH 9010 (66.101.13[04]) - BEARING PLATE - FROM 4/08 - 9010 (66) - THRESHING

1

87684739

PLATE ASSY.

1шт.

2

86620026

FLANGED BEARING

2шт.

3

NLS

NO LONGER SERVICED

1шт.

4

87581727

BRACKET

1шт.

5

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

7

100016

NUT,M10 x 1.5, Cl 8

3шт.

8

87342073

SENSOR

1шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.
