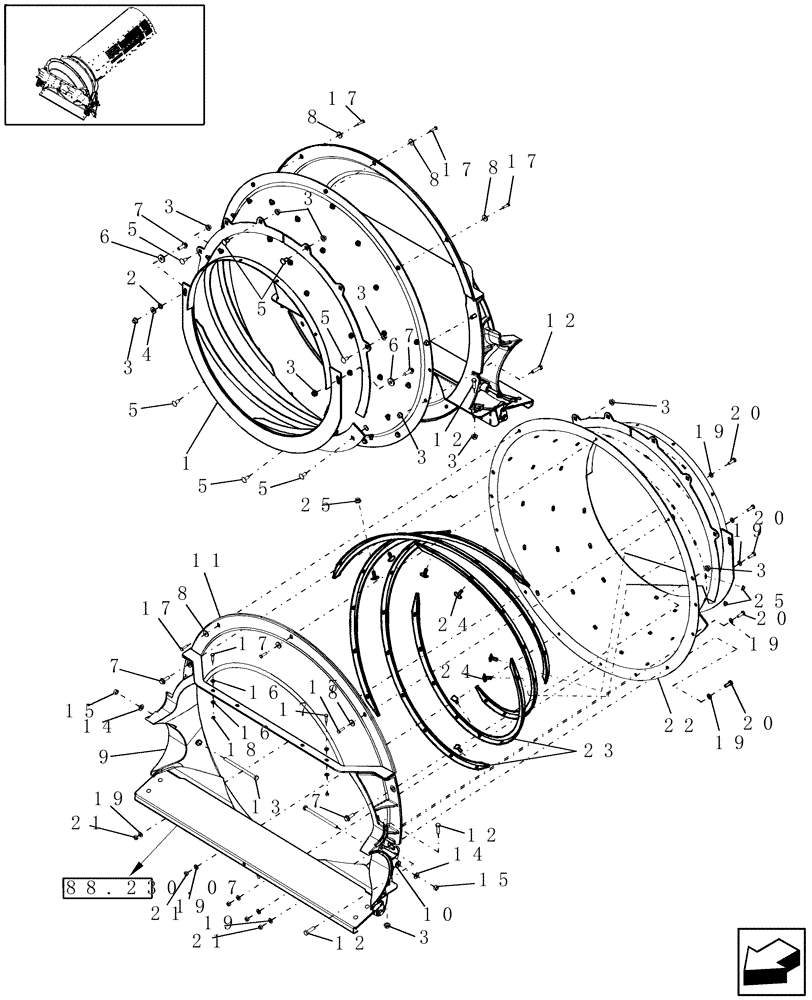

Запчасти Case IH 9010 (66.101.07[02]) - TRANSITION CONE - 9010 (66) - THRESHING

1

87390937

CONE

Extended Wear, Rice; Includes: Refs 22, 23, 24, 25

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

43436

FLANGE NUT,M12

13шт.

4

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

1шт.

5

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

7шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

7

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

4шт.

8

140041

WASHER,M8 x 28mm OD x 3mm Thk

3шт.

9

87517351

DEFLECTOR

R.H.

1шт.

10

87517350

DEFLECTOR

L.H.

1шт.

11

87106704

DOOR

1шт.

12

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

13

382181

BOLT,Hex, M12 x 1.75 x 190mm, Cl 8.8

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

17

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

5шт.

18

9706690

NUT,M8 x 1.25, Cl 8

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

5шт.

21

100016

NUT,M10 x 1.5, Cl 8

5шт.

22

NSS

NOT SOLD SEPARAT

CONE

1шт.

23

87053359

VANE

Vane

5шт.

24

433734A1

BOLT

45шт.

25

231-5346

FLANGE NUT,Flg, 3/8"-16

45шт.
