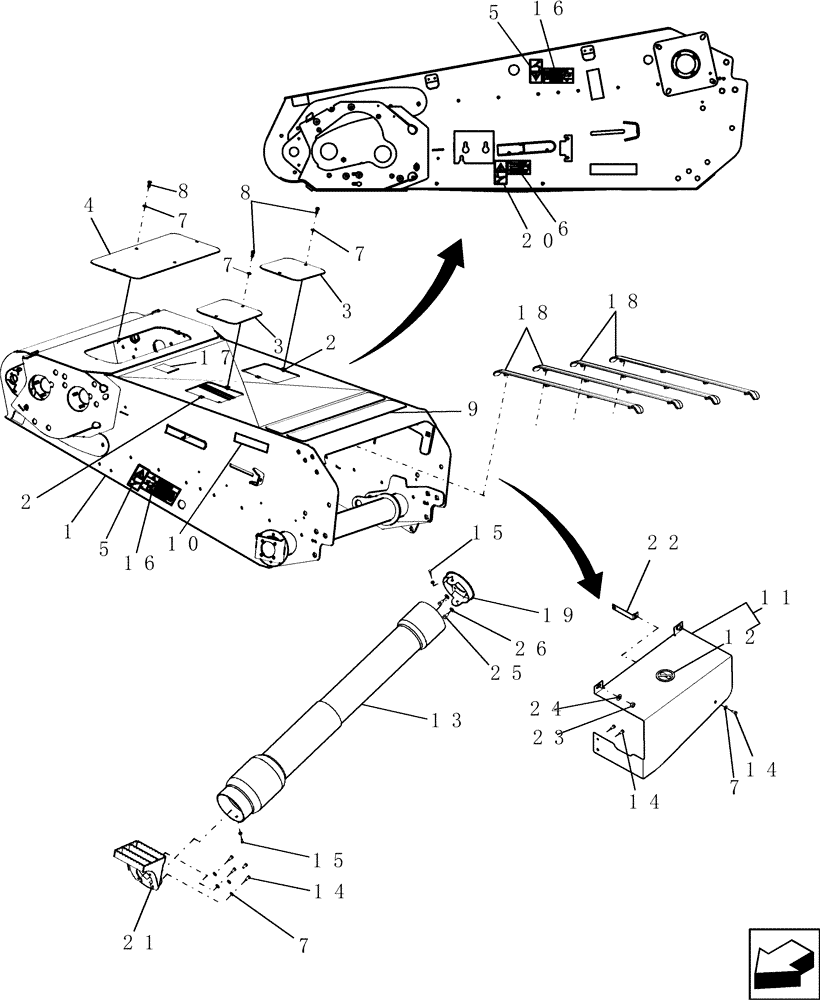

Запчасти Case IH 9010 (60.110.09) - FEEDER HOUSING AND SHIELDS - 9010 (60) - PRODUCT FEEDING

1

87629068

DIA KIT, HARVESTER

Housing, Feeder; Includes: Decals, Plus Refs 3, 4, & 18

1шт.

2

86508354

PUSH-ON NUT,M8 x 1.25

4шт.

3

86995571

COVER

2шт.

4

87283147

COVER

1шт.

5

84004735

CAUTION DECAL

2шт.

EU

1шт.

6

86626958

WARNING DECAL

English

1шт.

NA

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

9

86995792

PAD,125mm W x 1270mm L

Anti-Skid

2шт.

10

86547782

REFLECTOR,YELLOW

Reflective Tape

2шт.

11

87284925

COVER ASSY

Includes: Ref 12

1шт.

12

84432904

DECAL

No Step

1шт.

13

87106571

SHIELD

1шт.

14

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

15

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

2шт.

16

86624774

DANGER DECAL

2шт.

NA

1шт.

17

84011345

DECAL

4шт.

EU

1шт.

18

86638209

STRIP

Feeder Chain, Plastic Wear

4шт.

19

87283856

BRACKET

1шт.

20

84004735

CAUTION DECAL

1шт.

EU

1шт.

21

87616998

BRACKET

1шт.

22

NS

NOT SERVICED

Angle

1шт.

23

9706685

NUT,M12 x 1.75, Cl 8

2шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

25

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.
