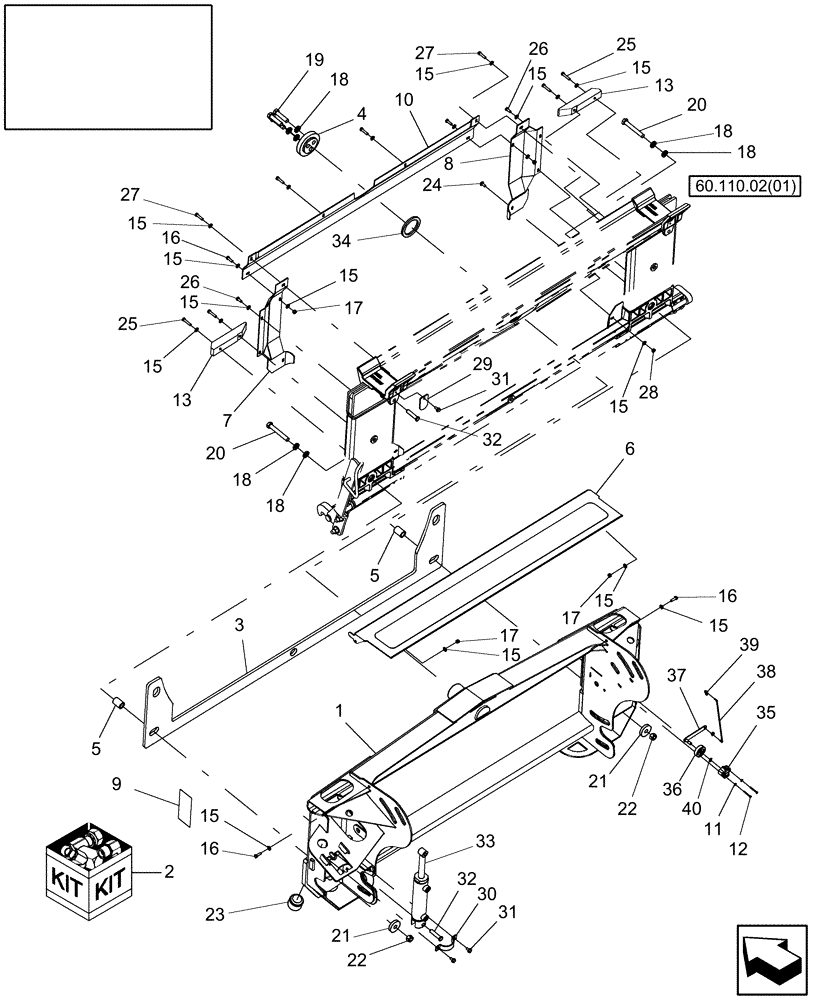

Запчасти Case IH 9010 (60.110.03) - LATERAL TILT FEEDER ADAPTER - 9010 (60) - PRODUCT FEEDING

1

87649363

ADAPTER

Includes: Ref 43

1шт.

2

87105744

SEAL KIT

Services Ref 33, Hyd Cyl

1шт.

3

86995541

PLASTIC

1шт.

4

87635130

RETAINING PLATE

1шт.

5

87107672

SPACER,20.64mm ID x 30.16mm OD x 42mm L

2шт.

6

84155101

SHEET

Shield, Top

1шт.

7

87587591

SHEET ASSY.

LH

1шт.

8

87587593

SHEET ASSY.

RH

1шт.

9

87413244

DECAL

1шт.

10

87673524

DEFLECTOR

1шт.

11

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

12

87384106

BOLT,M4 x 42.92mm, Cl 8.8

2шт.

13

84144529

SHIELD

Plate, Strip-Off

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

16

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

17

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

18

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

7шт.

19

11119231

BOLT,M16 x 75mm, Cl 10.9

3шт.

20

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

2шт.

21

913347

WASHER,M17 x 56mm OD x 11mm Thk

2шт.

22

86512555

NUT,M16 x 2, Cl 10

2шт.

23

87105683

CAP

1шт.

24

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

27

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

28

9706690

NUT,M8 x 1.25, Cl 8

2шт.

29

87312141

PLATE

1шт.

30

87107105

U-BRACKET

1шт.

31

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

32

87312143

PIN,14mm OD x 68.5mm L

2шт.

33

87282646

CYLINDER,Double Acting, 25mm Rod, 84mm Stroke

Lateral Tilt Feeder Adapter

1шт.

34

86995542

THRUST WASHER,77.5mm ID x 101.6mm OD x 7.8mm Thk

1шт.

35

87330286

SENSOR

1шт.

36

87362420

MOUNT

1шт.

37

87643243

SHAFT

Shaft

1шт.

38

87643245

LINK

1шт.

39

9821714

CLIP

2шт.

40

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.
