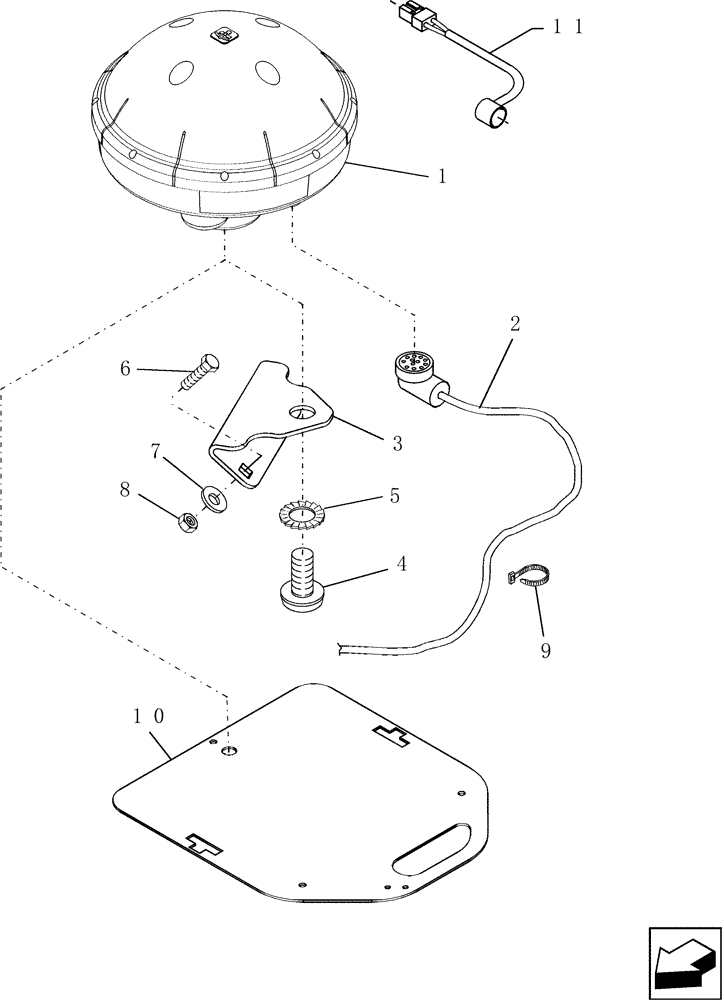

Запчасти Case IH 9010 (55.440.12[05]) - GPS MOUNT - 9010 (55) - ELECTRICAL SYSTEMS

1

87350411

ANTENNA

AFS 110

1шт.

1

87472720

ANTENNA

AFS100 Receiver

1шт.

1

87491749

ANTENNA

AFS 162

1шт.

2

87281699

CABLE

Antenna

1шт.

3

87109748

SUPPORT

1шт.

4

87106351

HEX SOC SCREW,BTN HD, 5/8" - 11 x 3/4"

1шт.

5

86977690

LOCK WASHER,Ext Tooth, 5/8"

1шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

86566989

CABLE TIE,208mm L

CABLE STRAP

10шт.

10

87568855

MOUNTING PLATE

252 Mounting PTD

1шт.

11

87383158

WIRE HARNESS

252 To 100 Adapter; L = 175mm

1шт.
