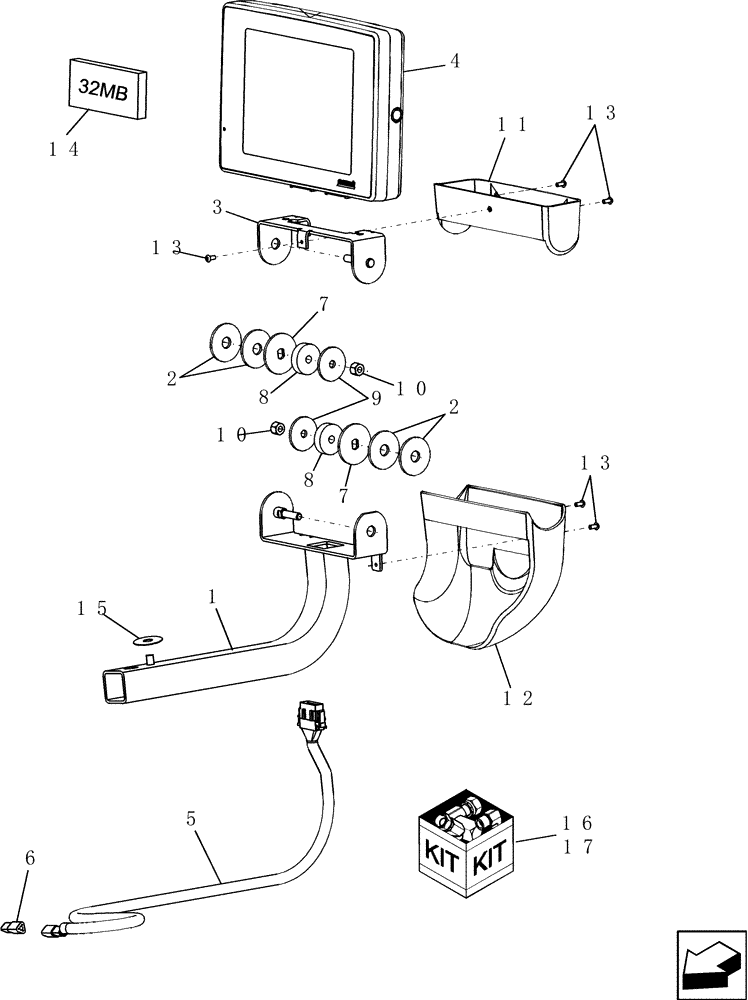

Запчасти Case IH 9010 (55.440.07[02]) - UNIVERSAL DISPLAY PLUS MONITOR, TOUCH SCREEN DISPLAY - 9010 (55) - ELECTRICAL SYSTEMS

1

87555245

TUBE

Touch Screen Display

1шт.

2

86997469

DISC

Friction

4шт.

3

84185362

BRACKET

1шт.

4

87387964

DISPLAY

Touch Screen, AFS PRO600

1шт.

5

87579738

WIRE HARNESS

ICDU Adapter

1шт.

6

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

7

86997470

WASHER

2шт.

8

86997472

WASHER

Plastic

2шт.

9

86997471

WASHER

2шт.

10

86528579

NUT,M8 x 1.25

2шт.

11

86997517

COVER

Upper

1шт.

12

86976473

COVER

Bottom

1шт.

13

340-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

5шт.

14

87341265

SOFTWARE

Data Card; 128MB CF W/Adapter (PCMCIA To Compact Flash)

1шт.

Also Included In Yield Moisture Kit 84083168

1шт.

14

87646115

ADAPTER

Software, 512 MB Compact Flash Data Card W/PCMCIA Adapter

1шт.

14

87745104

SOFTWARE

CIH Desktop Version 8.0

1шт.

15

87284337

SHIM

1шт.

16

87389138

ARM ASSY.

Mtg., TSD; Includes: Refs 1 Thru 3, 5, 7 Thru 13

1шт.
