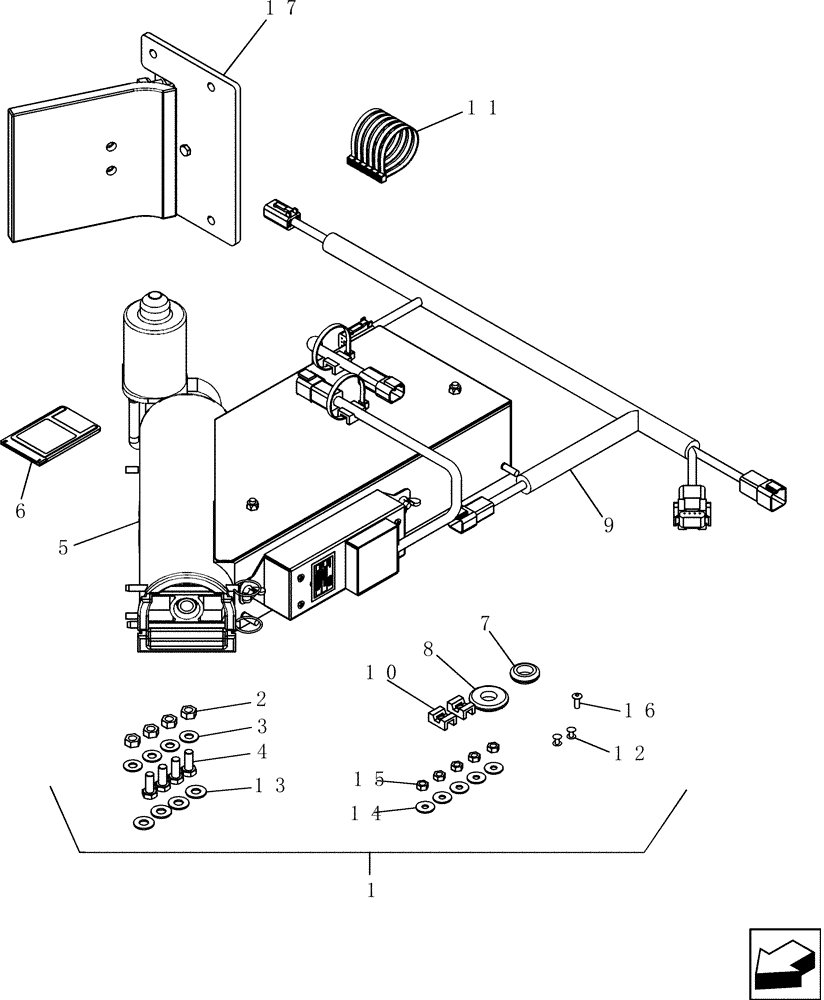

Запчасти Case IH 9010 (55.418.02) - GRAIN FLOW/MOISTURE SENSOR DIA KIT - 9010 (55) - ELECTRICAL SYSTEMS

1

87712022

DIA KIT, HARVESTER

CAN Yield/Moisture DIA

1шт.

2

9706690

NUT,M8 x 1.25, Cl 8

4шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

87534936

SENSOR

Moisture Bypass

1шт.

6

87646115

ADAPTER

512MB CF W/Adapter

1шт.

7

103258

GROMMET,5/8" ID x 7/8" Groove Dia

1шт.

8

87379691

GROMMET

1шт.

9

87634523

WIRE HARNESS

Yield & Moisture

1шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP

6шт.

12

14642095

RIVET

2шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

14

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

15

9706755

NUT,M6, Cl 8

5шт.

16

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

17

87387778

SENSOR

CAN Flow

1шт.
