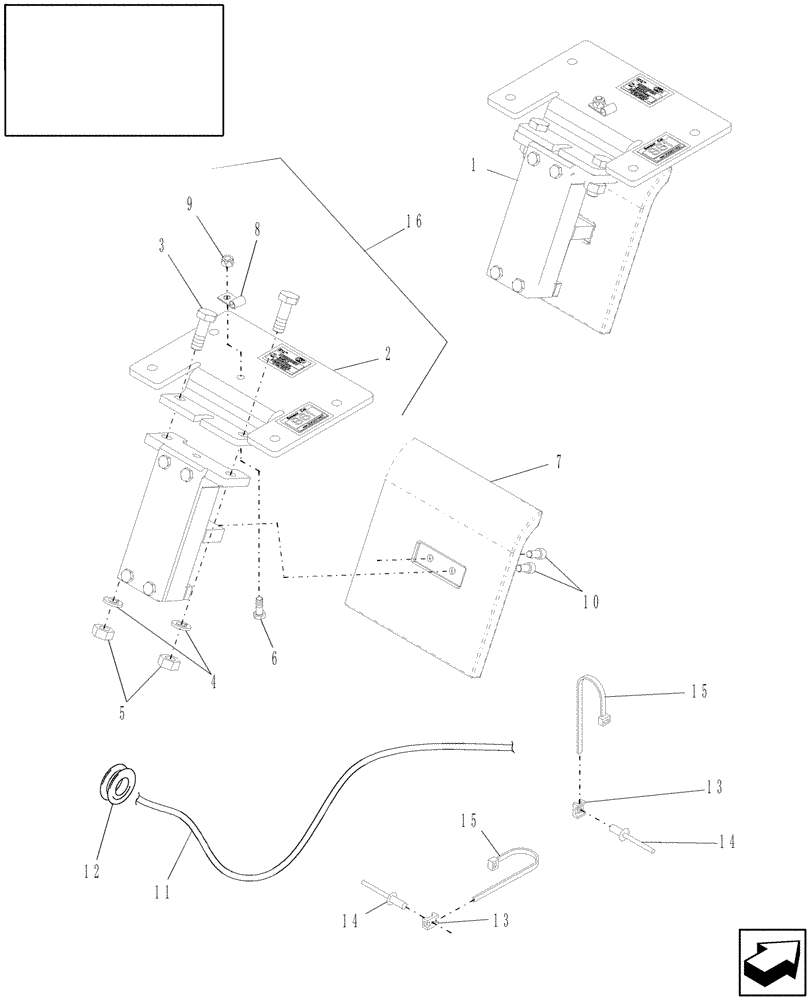

Запчасти Case IH 9010 (55.418.01[02]) - GRAIN FLOW SENSOR - 9010 (55) - ELECTRICAL SYSTEMS

1

87283659

SENSOR

Grain Flow; Includes: Refs 2 Thru 10 W/Plastic Plate

1шт.

Also Included In Yield Moisture Kit 84083168

1шт.

2

87109288

SUPPORT

Plate

1шт.

2

87283658

SUPPORT

Plate

1шт.

3

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

100016

NUT,M10 x 1.5, Cl 8

2шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

7

87280785

PLATE

Aluminum

1шт.

7

87282433

PLATE

Stainless Steel

1шт.

7

87283836

PLATE

Plastic, Includes: (2) Ref 10

1шт.

8

272535

CLAMP,1/8", Insul, 1/4" Bolt

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

12

87379691

GROMMET

1шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

5шт.

14

425521

RIVET,Pop, 3.96mm OD x 12.2mm L

5шт.

15

86566989

CABLE TIE,208mm L

CABLE STRAP

5шт.

16

87387778

SENSOR

Flow

1шт.
