(55.414.01[02]) - ENGINE SENSORS - 9010

Запчасти Case IH 9010 (55.414.01[02]) - ENGINE SENSORS - 9010 (55) - ELECTRICAL SYSTEMS

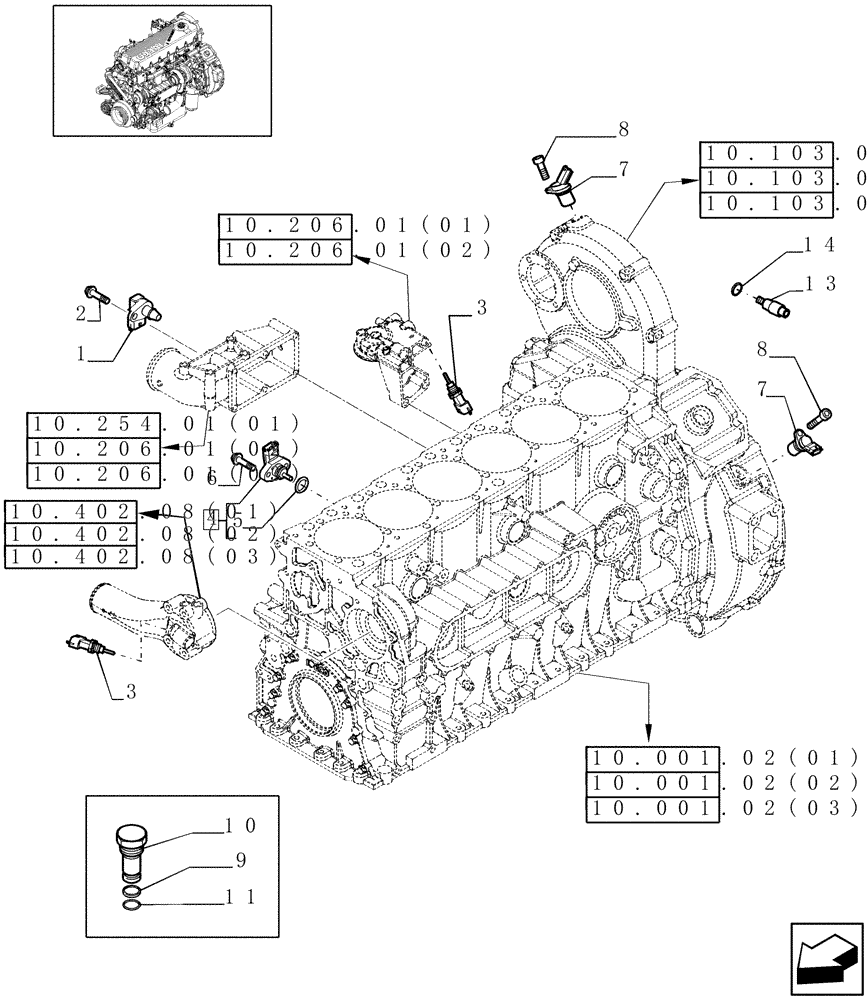

Схема запчастей Case IH 9010 - (55.414.01[02]) - ENGINE SENSORS - 9010 (55) - ELECTRICAL SYSTEMS
10.103.04(01)
7
10.103.04(03)
10.206.01(03)
10.206.01(01)
3
10.001.02(03)
9
7
10.402.08(03)
5
14
3
4
10.206.01(02)
11
10.001.02(02)
2
10.402.08(02)
10.206.01(02)
13
10.402.08(01)
10.103.04(02)
1
8
10.001.02(01)
8
10.254.01(01)
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504073323

SENSOR

Air Temperature / Pressure, 4 Wire

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

3

82017881

SENSOR

Coolant Temperature

1шт.

4

4890193

SENSOR

Oil Pressure & Temp

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

7

504096645

TRANSMITTER

2 Wire

2шт.

8

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

M6 x 25

2шт.

9

82017881

SENSOR

Temperature & Pressure

1шт.

10

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

11

500346074

SENDER UNIT

Fuel Filter Pressure Switch

1шт.

Выбрано товаров: 11
