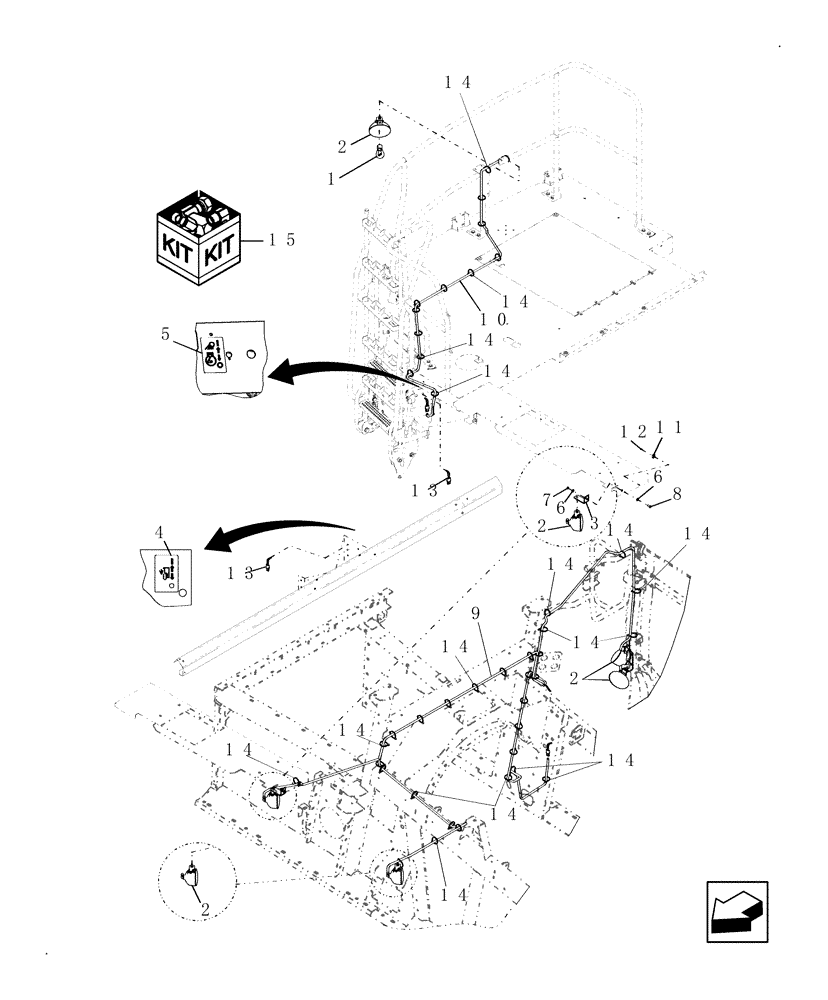

Запчасти Case IH 9010 (55.404.49[02]) - DELUXE SERVICE LIGHTING - 9010 (55) - ELECTRICAL SYSTEMS

1

87107077

BULB,Halogen, 12V, 37.5W

862, 12V; Services Ref 2

5шт.

2

87001315

WORK LAMP,Halogen, 12V, 37.5W, Clear

Includes: Ref 1

5шт.

3

87105352

BRACKET

1шт.

4

87015175

DECAL

Sign, Light Switch

1шт.

5

87013946

DECAL

Sign, Light Switch

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

9706690

NUT,M8 x 1.25, Cl 8

2шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

87109354

WIRE HARNESS

Underpanel Lights

1шт.

10

87109355

WIRE HARNESS

Engine Deck Lights

1шт.

11

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

1шт.

12

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

1шт.

13

391062A1

SWITCH

Service Light

2шт.

14

86566989

CABLE TIE,208mm L

CABLE STRAP Nylon

42шт.

15

84083977

LIGHT ASSY.

Kit; Includes: Refs 1 Thru 14

1шт.
