(55.100.37[02]) - WIRE HARNESS, EXPANSION - 9010

Запчасти Case IH 9010 (55.100.37[02]) - WIRE HARNESS, EXPANSION - 9010 (55) - ELECTRICAL SYSTEMS

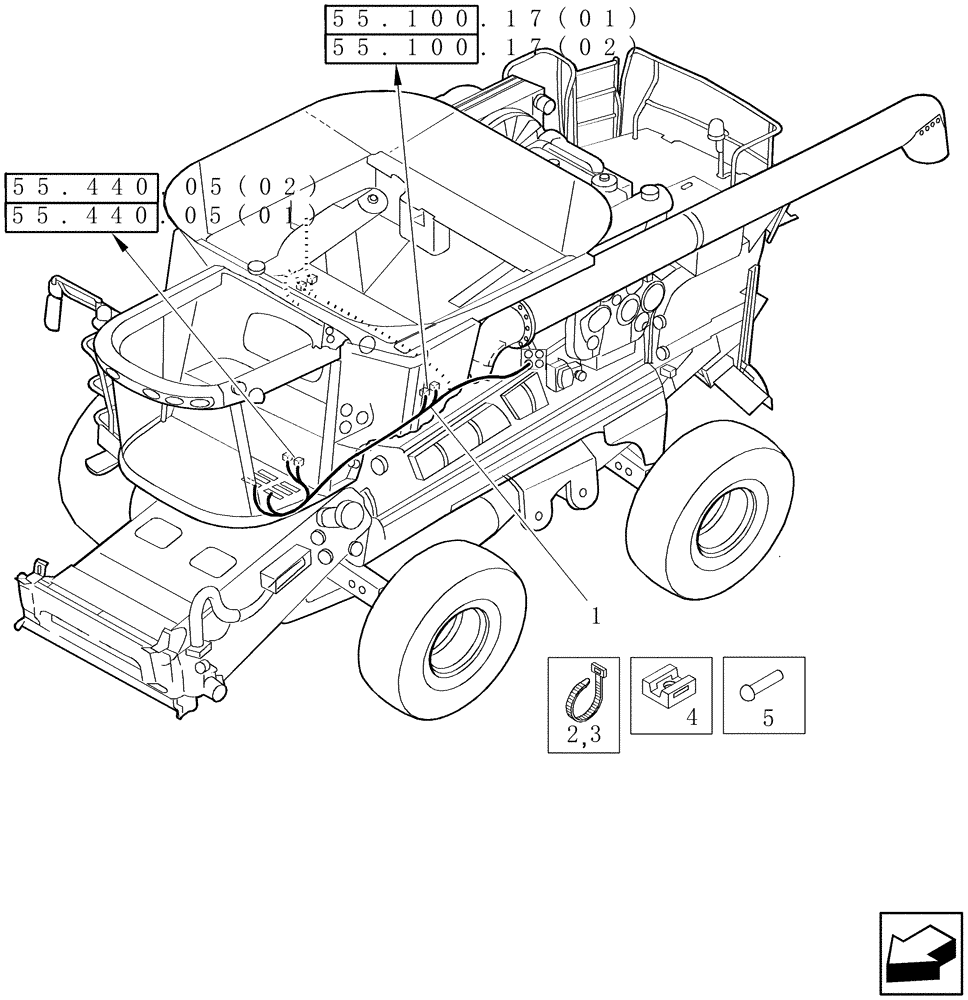

Схема запчастей Case IH 9010 - (55.100.37[02]) - WIRE HARNESS, EXPANSION - 9010 (55) - ELECTRICAL SYSTEMS
55.440.05(02)
5
1
4
2
55.100.17(01)
3
55.440.05(01)
55.100.17(02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87624236

WIRE HARNESS

Expansion

1шт.

2

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP 11"

1шт.

3

86566989

CABLE TIE,208mm L

CABLE STRAP 7.5"

1шт.

4

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

1шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

Выбрано товаров: 5
