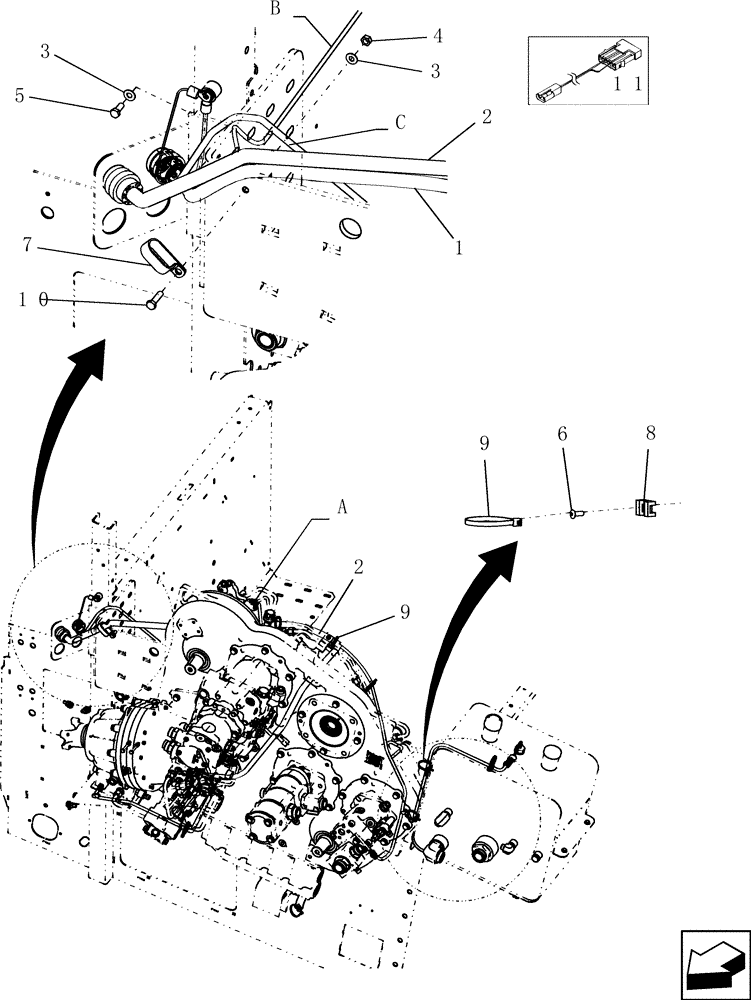

Запчасти Case IH 9010 (55.100.34[03]) - WIRING HARNESS, ENGINE GEARBOX - 9010 (55) - ELECTRICAL SYSTEMS

1

87371024

WIRE HARNESS

Engine

1шт.

2

87624237

WIRE HARNESS

Gearbox

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

4

9706690

NUT,M8 x 1.25, Cl 8

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

3шт.

7

87000220

HOSE CLAMP

1шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

3шт.

9

86566989

CABLE TIE,208mm L

CABLE STRAP

3шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

11

87284207

WIRE HARNESS

Fixed Speed Feeder Adapter

1шт.
