Запчасти Case IH 9010 (50.200.02) - AIR CONDITIONING UNIT - MOUNTING GROUP (50) - CAB CLIMATE CONTROL

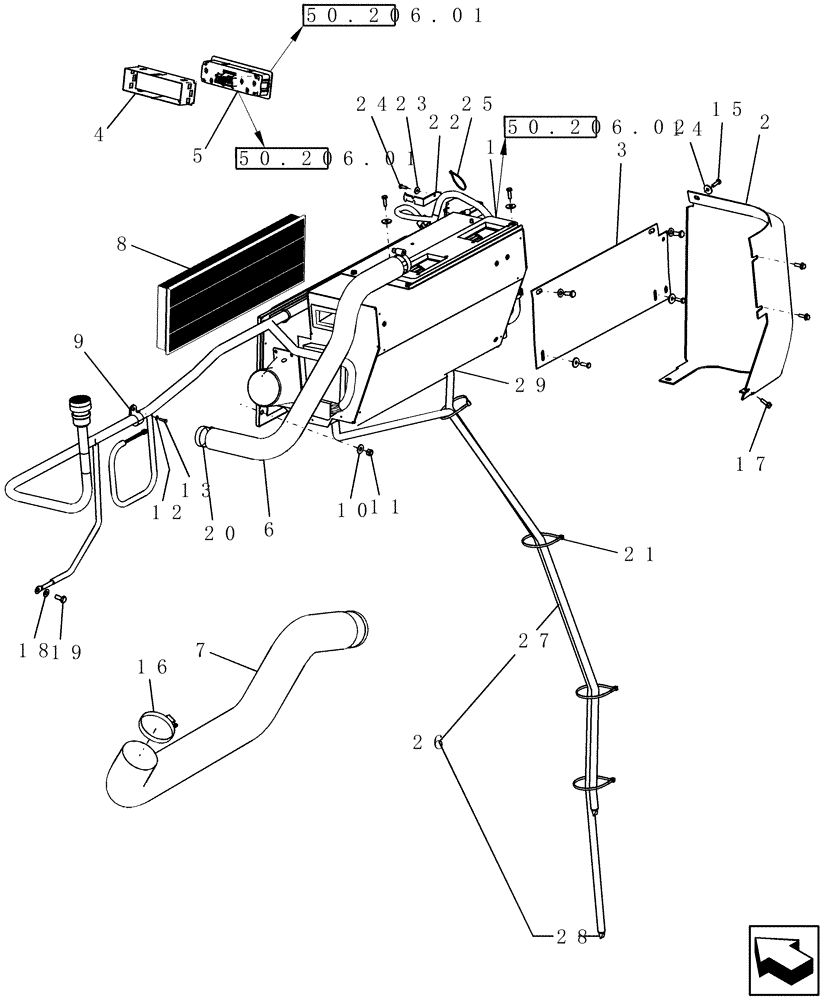

Схема запчастей Case IH 9010 - (50.200.02) - AIR CONDITIONING UNIT - MOUNTING GROUP (50) - CAB CLIMATE CONTROL
19
6
24
5
10
27
4
16
50.206.01
50.206.02
50.206.01
17
7
15
22
28
13
14
3
11
26
21
23
2
9
25
12
1
20
18
8
29

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Air Conditioner, ATC; For Component Breakdown

1шт.

2

84067980

COVER

1шт.

3

84076757

SUPPORT

1шт.

4

87281122

SLEEVE

1шт.

5

87337658

AIR CONTROL

1шт.

6

86531050

AIR DUCT

A/C Unit To Cab; L = 780mm, I.D. = 50.8mm

1шт.

7

86531048

FLEXIBLE HOSE,74mm ID x 1190mm L

Cab Air Filter to A/C Unit

1шт.

8

84058793

AIR FILTER,510mm L x 174mm W x 37.4mm Thk, Paper

Cab, Air Recirculation

1шт.

9

84818444

CLAMP,22.3mm ID, 6.7mm Bolt Hole, P Type

1шт.

10

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

11

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

12

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

13

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

1шт.

14

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

6шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

16

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

2шт.

17

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

20

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

21

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

4шт.

22

84431349

BRACKET

1шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

24

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

1шт.

25

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

26

86976191

FLEXIBLE HOSE

Drain; Includes: Refs 27 Thru 29

2шт.

27

198091C1

HOSE,12.95mm ID x 15240mm L

50' Roll; 75" Required

1шт.

Cut To Fit

1шт.

28

109239C2

CHECK VALVE

2шт.

29

1250522C3

FITTING

2шт.

Выбрано товаров: 30
