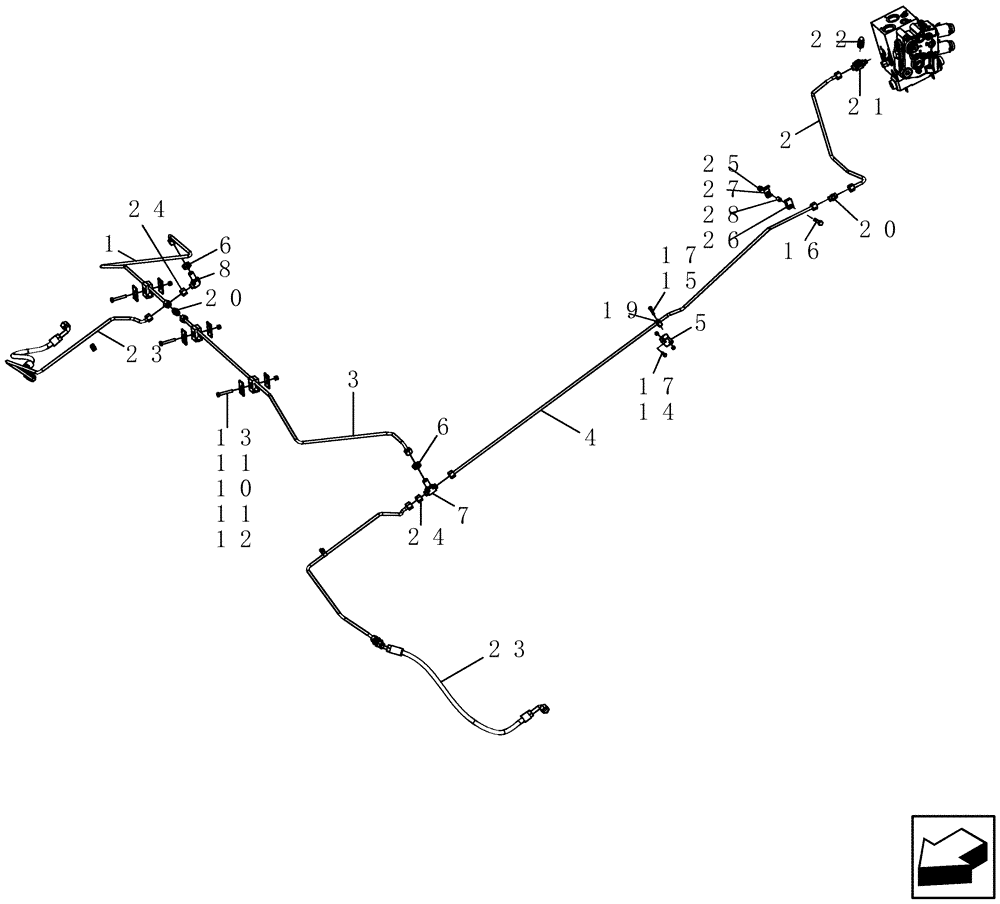

Запчасти Case IH 9010 (48.134.10[03]) - DIA TRACK KIT HYD TUBES AFX8010, AFX8120, AFX9120 (48) - TRACKS & TRACK SUSPENSION

1

87471949

HYD TUBE,0.375" OD

Track Pressure RH

1шт.

2

87470922

HYD TUBE,0.375" OD

Track Pressure LH

1шт.

3

87471948

HYD TUBE,0.375" OD

Hydraulic LH, Track Front

1шт.

4

87470925

HYD TUBE,0.375" OD

Hydraulic Track Pressure LH

1шт.

5

87496958

BRACKET

1шт.

6

87010704

BHD LOCK NUT,11/16"-16

2шт.

7

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

1шт.

8

87317453

ELBOW,90 Degree, 11/16" - 16, ORFS, Blkhd

1шт.

10

87000159

CLAMP

3шт.

11

72180326

PLATE

6шт.

12

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

15

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

16

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

2шт.

19

236558A1

CLAMP

1шт.

20

84431546

UNION,11/16"-16 ORFS

2шт.

21

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

22

243670A1

COUPLING

1шт.

23

84242083

SERVICE KIT

1шт.

24

87331950

CAP ASSY.,Hex, 11/16"-16

2шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

26

84172494

CLAMP

1шт.

27

84172253

CLAMP

1шт.

28

84172484

SPACER

Tube Clamp

1шт.
