Запчасти Case IH 9010 (48.134.06) - TRACK DRIVE - TENSIONING MECHANISM, ADJUSTER-RECOIL - NA ONLY - 8010 (48) - TRACKS & TRACK SUSPENSION

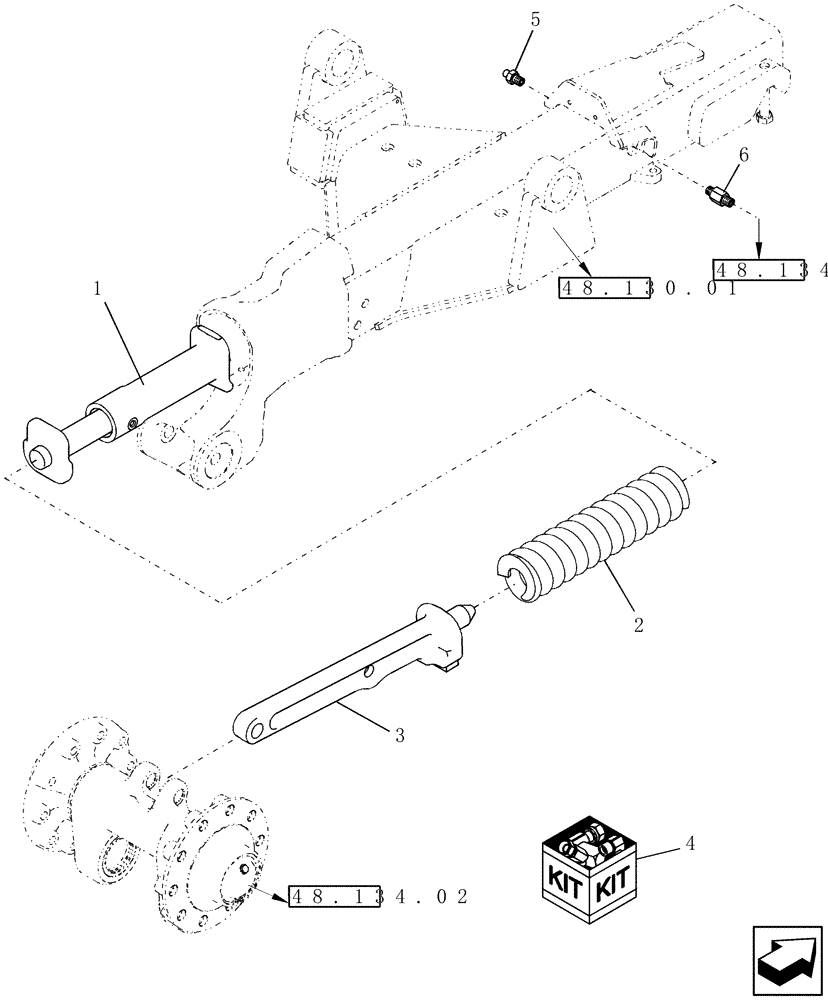

Схема запчастей Case IH 9010 - (48.134.06) - TRACK DRIVE - TENSIONING MECHANISM, ADJUSTER-RECOIL - NA ONLY - 8010 (48) - TRACKS & TRACK SUSPENSION
3
48.134.02
4
48.134.03
48.130.01
6
5
1
2

Артикул

Название

Примечание

Количество

1

87304299

HYDRAULIC CYLINDER,60mm Rod, 228mm Stroke

Track Drive; See Also: Ref 4

2шт.

1

87304299R

REMAN-HYD CYLINDER

8010 AXIAL-FLOW COMBINE - PIN HAJ200001 THRU HAJ204999, Track Drive (9/06-9/08)

2шт.

1

87304299C

CORE-HYD CYLINDER

Return Number

2шт.

2

255729A1

SPRING

2шт.

3

87436823

LINK ASSY.

Tension

2шт.

4

87377667

SEAL KIT

Services Ref 1

2шт.

5

325647A2

COUPLING

2шт.

6

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

2шт.

Выбрано товаров: 8
