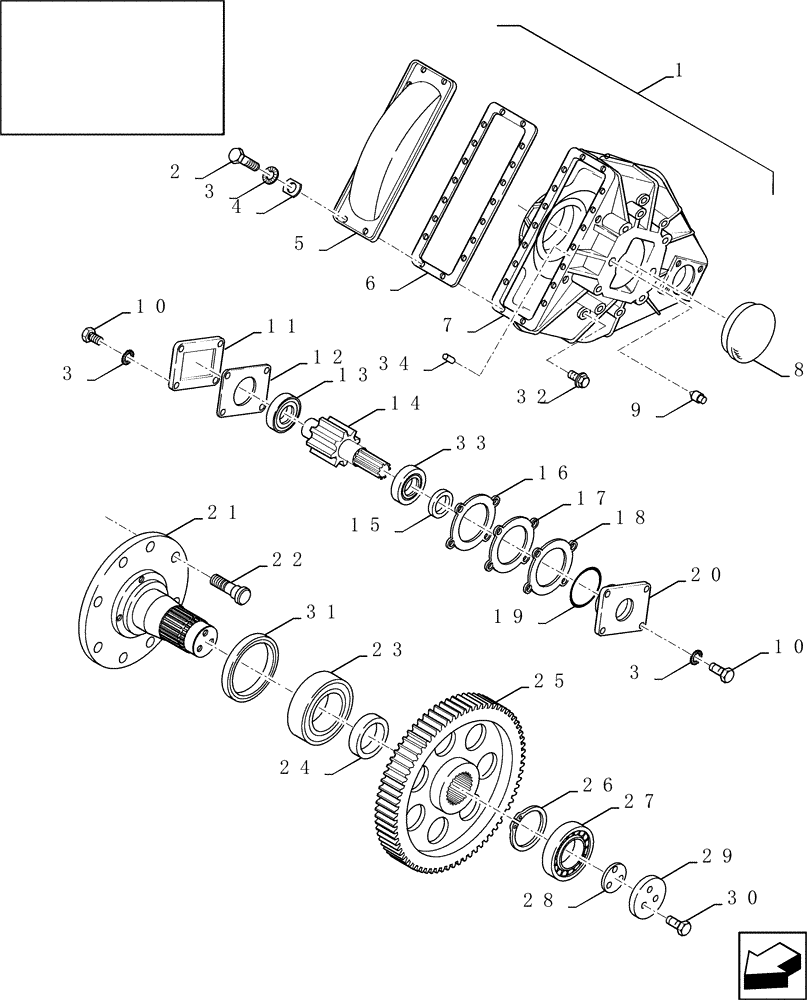

Запчасти Case IH 9010 (48.130.01) - FINAL DRIVE, TRACK - NA ONLY (48) - TRACKS & TRACK SUSPENSION

1

87734570

HOUSING

Final Drive

1шт.

1

84514129R

REMAN-TRANSMISSION

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Reman for New PN 87734570

1шт.

1

84514129C

CORE-TRANSMISSION

Return Number

1шт.

2

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

18шт.

3

86978768

DOWEL,M12 x 30mm L

2шт.

4

86500888

BEARING ASSY,45mm ID x 85mm OD x 32mm W

1шт.

5

86976281

COVER

1шт.

6

NS

NOT SERVICED

Replace W/Liquid Gasket

1шт.

7

87734567

HOUSING

1шт.

8

613201

COVER,153.5mm OD x 42.1mm W

1шт.

9

9832264

SEAL,198.3mm ID x 230mm OD x 13mm Thk

1шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

11

613212

BEARING COVER

1шт.

12

410920

GASKET,0.9mm Thk

1шт.

13

86975647

TAPERED BEARING,41.27mm ID x 85.72mm OD x 30.16mm W

1шт.

14

87734565

GEAR

1шт.

15

86623595

RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk

Gasket

1шт.

16

382948

SHIM,89.7mm ID x 108mm OD x 0.05mm Thk

1шт.

17

382949

SHIM,89.7mm ID x 108mm OD x 0.2mm Thk

1шт.

18

382950

SHIM,89.7mm ID x 108mm OD x 0.5mm Thk

1шт.

19

913107

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

20

87736696

COVER

Flange

1шт.

21

87649847

AXLE

1шт.

22

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

10шт.

23

86975648

TAPERED BEARING,104.78mm ID x 180.98mm OD x 47.63mm W

1шт.

24

84814999

SPACER,105.01mm ID x 114.81mm OD x 39.22mm L

1шт.

25

87734566

GEAR

1шт.

26

613200

SPACER,M84 ID x 98.5mm OD x 4.6mm H

1шт.

27

86975646

TAPERED BEARING,82.55mm ID x 139.99mm OD x 36.51mm W

1шт.

28

395393

SHIM,45mm ID x 75mm OD x 0.5mm Thk

1шт.

28

395392

SHIM,45mm ID x 75mm OD x 0.2mm Thk

1шт.

28

395391

SHIM,45mm ID x 75mm OD x 0.05mm Thk

1шт.

29

382503

WASHER,Special, 17mm ID x 95mm OD x 14mm Thk

1шт.

30

87036180

BOLT,Hex, M16 x 35mm, Cl 10.9, Full Thd

3шт.

31

9832264

SEAL,198.3mm ID x 230mm OD x 13mm Thk

1шт.

32

412413

PLUG,M18 X 1.5

Uses Washer J912889

4шт.

33

86500888

BEARING ASSY,45mm ID x 85mm OD x 32mm W

1шт.
