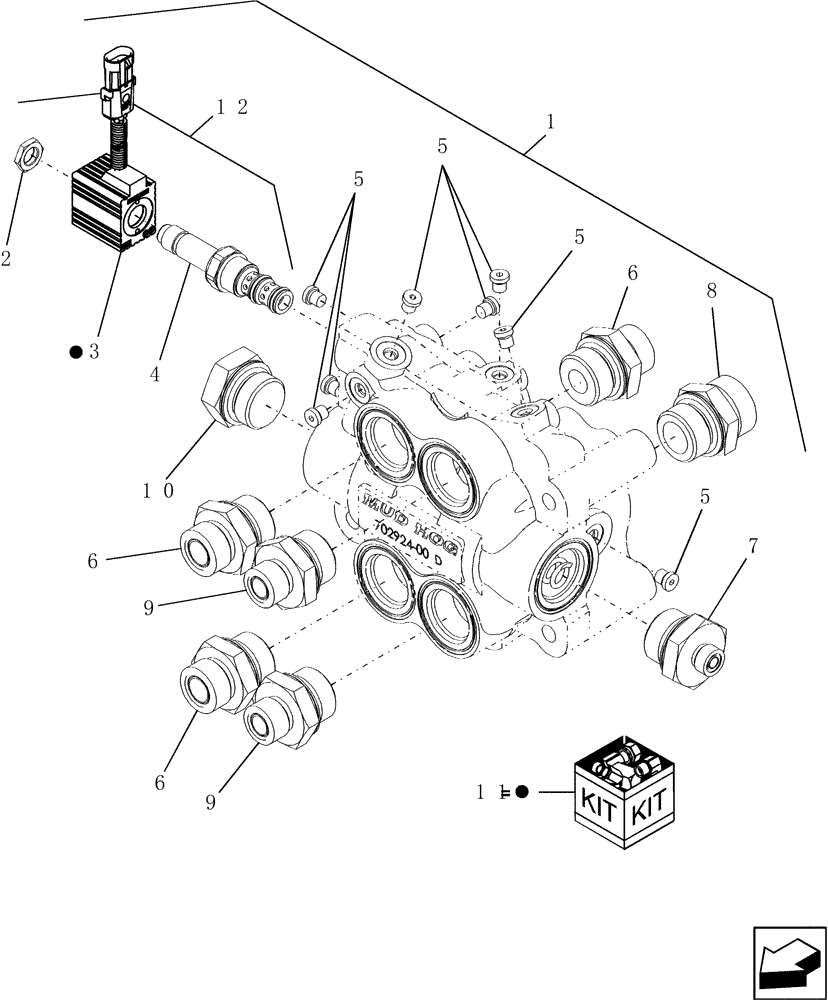

Запчасти Case IH 9010 (44.200.12[02]) - POWERED REAR AXLE, SELECTOR VALVE (44) - WHEELS

1

87281708

VALVE

PRA Selector

1шт.

2

590907

NUT

1/2"-20, UNF

1шт.

3

87645123

SOLENOID

Coil

1шт.

4

87283662

CARTRIDGE

1шт.

5

86602475

PLUG

-12, O-Ring, Hex Socket

8шт.

6

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

3шт.

7

87281712

HYD CONNECTOR

M33 x 2 / -16 ORS Modified

1шт.

8

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

9

87035471

HYD CONNECTOR,1"-14 ORFS x M33 x 1.5 ORB

Includes: O-Rings

2шт.

9

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

220069A1

PLUG,M33 x 2, ORB

1шт.

11

86509023

SEAL KIT

1шт.

12

87281710

SOLENOID VALVE

Includes: Refs 2, 3, & 4

1шт.
