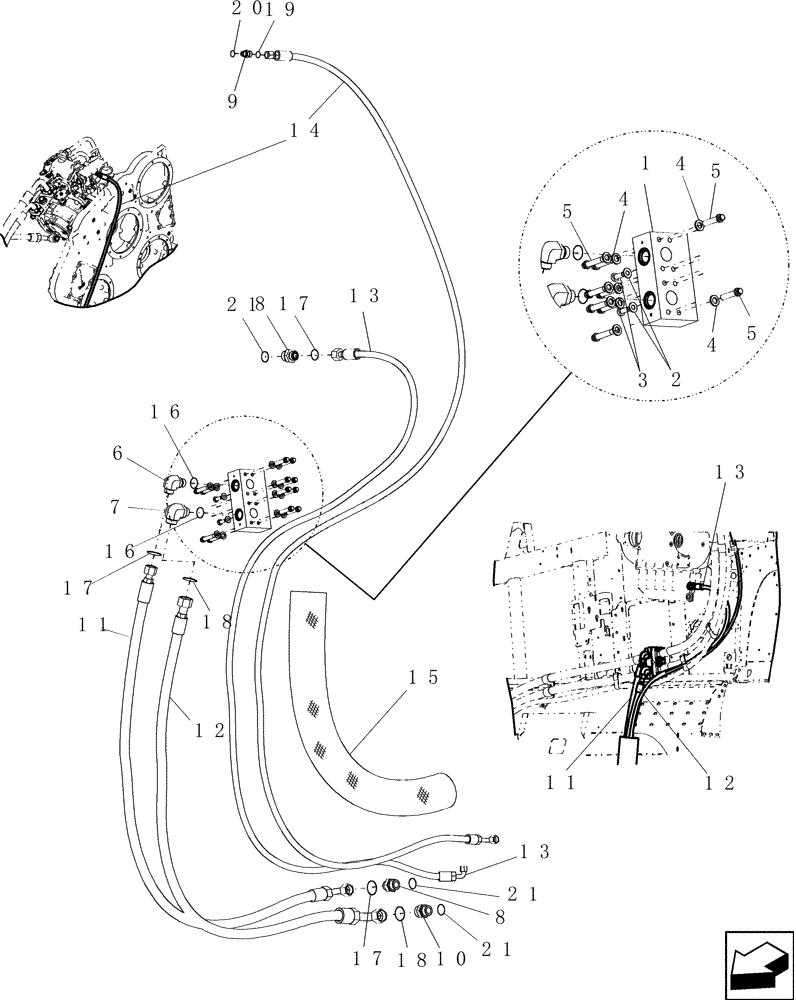

Запчасти Case IH 9010 (44.200.09) - HYDRAULIC LINES, POWERED REAR AXLE (44) - WHEELS

1

86976663

CONNECTING BLOCK

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

3

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

5

87026652

12 PT SCREW,Flg, M12 x 1.75 x 50mm, Cl 12.9

16шт.

6

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

7

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

1шт.

8

86579683

HYD CONNECTOR,1-3/16"-12 ORFS x M33 x 2.0 ORB

1/2шт.

9

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

10

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

1шт.

11

87105632

FLEXIBLE HOSE

PRA Block, Pressure, A L = 2010mm

1шт.

12

87105635

HOSE ASSY.

PRA Block, Pressure, B; L = 1950mm

1шт.

13

87105633

HOSE ASSY.

Valve, Drain, PRA; L = 3510mm

1шт.

14

87280418

HOSE

Motor, Drain, PRA; L = 4725mm

1шт.

15

87106155

SLEEVE

Hose Protection

1шт.

16

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

M27

2шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

M20

3шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

M25

2шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

M16

1шт.

21

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

M33

3шт.

22

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.
