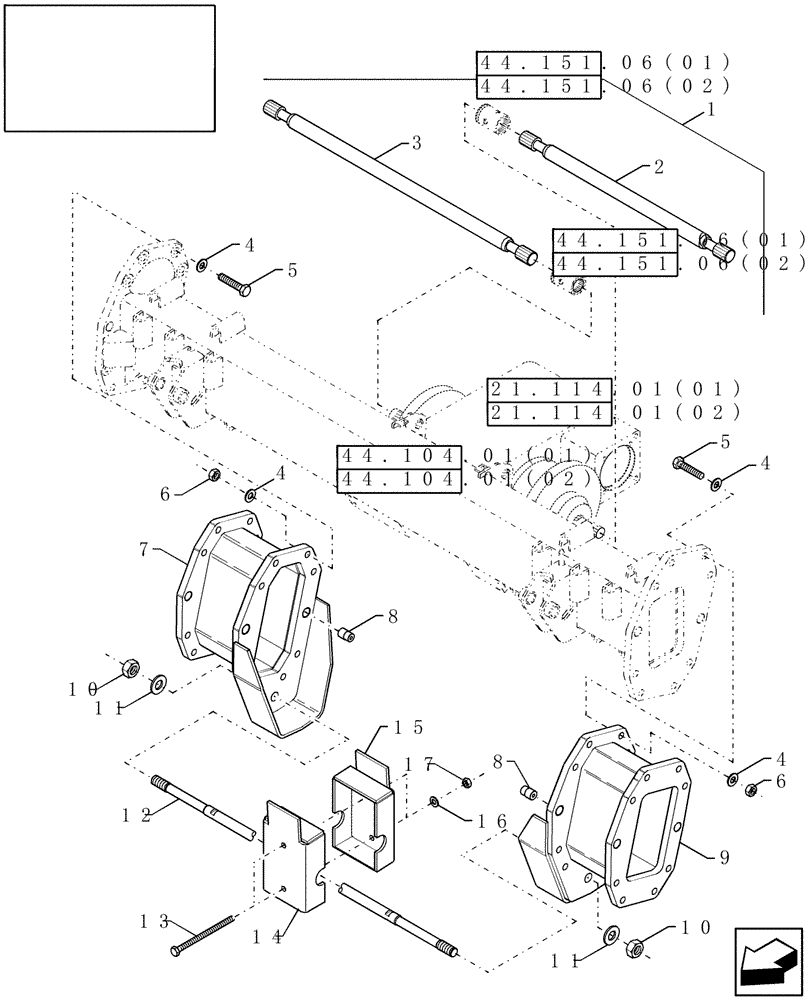

Запчасти Case IH 9010 (44.101.01[02]) - FRONT AXLE EXTENSION KITS - 8010 (44) - WHEELS

1

84095969

DIA KIT, HARVESTER

Axle Extensions, 138mm, For Planetary Final Drive

1шт.

1

84095964

DIA KIT, HARVESTER

Axle Extensions, 265mm, For Planetary Final Drive

1шт.

1

84095959

DIA KIT, HARVESTER

Axle Extensions, 316mm, For Planetary Final Drive

1шт.

2

84440985

DRIVE SHAFT

Transmission Half-shaft, LH, For 138mm Extension, For Planetary Final Drive

1шт.

2

84440967

DRIVE SHAFT

Transmission Half-shaft, LH, For 265mm Extension, For Planetary Final Drive

1шт.

2

84440951

DRIVE SHAFT

Transmission Half-shaft, LH, For 316mm Extension, For Planetary Final Drive

1шт.

3

84440991

DRIVE SHAFT

Transmission Half-shaft, RH, For 138mm Extension, For Planetary Final Drive

1шт.

3

84440974

DRIVE SHAFT

Transmission Half-shaft, RH, For 1188mm Extension, For Planetary Final Drive

1шт.

3

84440957

DRIVE SHAFT

Transmission Half-shaft, RH, For 316mm Extension, For Planetary Final Drive

1шт.

4

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

32шт.

5

87024335

BOLT,Hex, M20 x 80mm, Cl 10.9

16шт.

6

89706694

NUT,M20, Cl 8

16шт.

7

84440939

EXTENSION

RH, 138mm

1шт.

7

84440935

EXTENSION

RH, 265mm

1шт.

7

84440931

EXTENSION

RH, 316mm

1шт.

8

80626826

PIN

4шт.

9

84440937

EXTENSION

LH, 138mm

1шт.

9

84440933

EXTENSION

LH, 265mm

1шт.

9

84440929

EXTENSION

LH, 316mm

1шт.

10

80300852

NUT

2шт.

11

80140184

WASHER,31mm ID x 50mm OD x 3mm Thk

2шт.

12

84989399

ROD

1шт.

13

382358

BOLT,Hex, M16 x 2 x 200mm, Cl 8.8

2шт.

14

84075648

CLAMP

1шт.

15

84075650

CLAMP

1шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

17

825-1416

NUT,M16, Cl 8

2шт.
