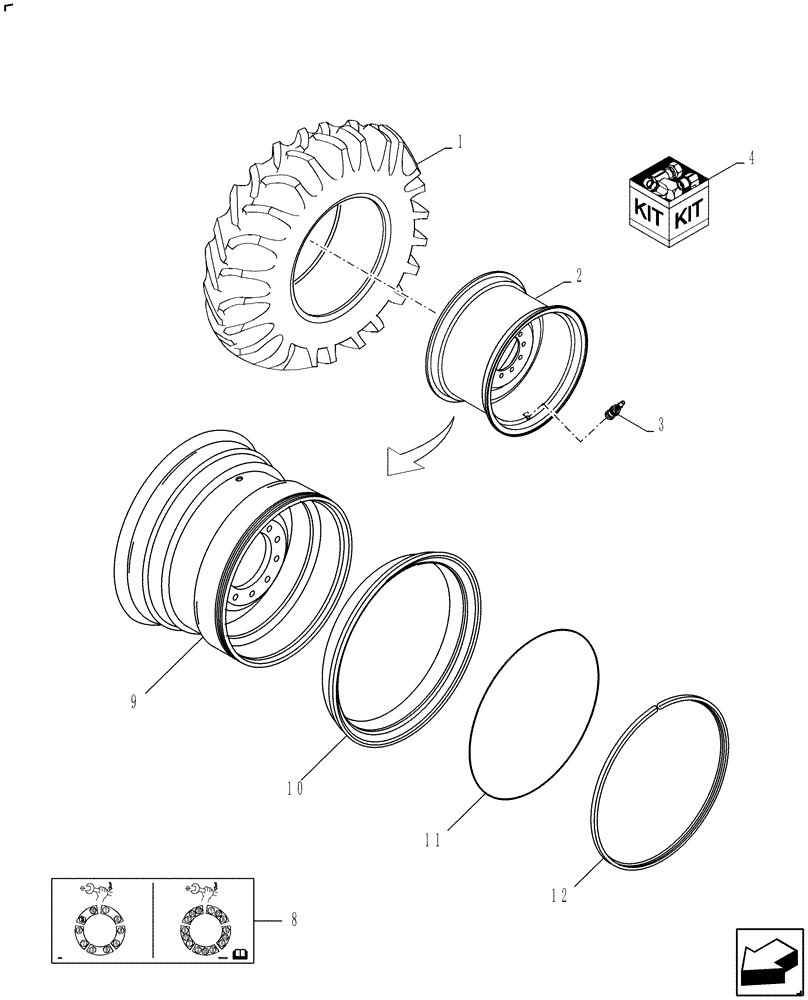

Запчасти Case IH 9010 (44.100.07) - WHEELS, FRONT - 76 X 50.00-32 X DW44A - 7010/8010 (44) - WHEELS

1

NS

NOT SERVICED

Tire

1шт.

2

86996678

WHEEL ASSY

Includes: Refs 9 Thru 12

1шт.

3

86997685

TIRE TUBE

1шт.

4

87280416

KIT

Includes: Refs 5 & 6

1шт.

4

87283866

KIT

Includes: Refs 5, 6, & 7

1шт.

5

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

20шт.

6

9850384

WASHER,23mm ID x 40mm OD x 6mm Thk

20шт.

7

87283521

STUD,M22 x 180

2шт.

8

87570139

DECAL

Bolt Torquing Sequence

1шт.

9

NSS

NOT SOLD SEPARAT

Wheel

1шт.

10

87758241

LOCKING RING

Side; 32 x 44DWM

1шт.

11

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

1шт.

12

184472C1

RING

1шт.
