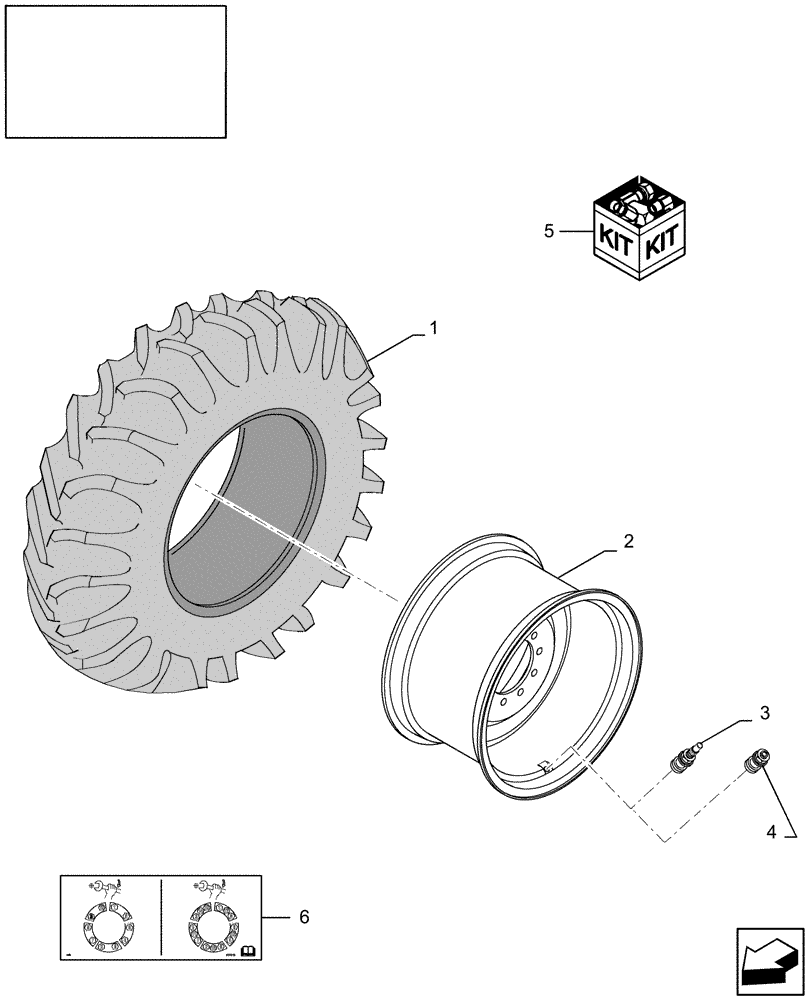

Запчасти Case IH 9010 (44.100.01[02]) - WHEELS, FRONT - 32 X DW36A - 7010/8010 (44) - WHEELS

1

NS

NOT SERVICED

Tire, 1050/50R32 178A8 HF3

1шт.

2

87627433

RIM

Wheel, 32 x DW36A

1шт.

3

87106339

VALVE STEM

1шт.

4

87106340

PLUG

For Tubless Tire

1шт.

5

87283866

KIT

Fixation; Includes: Refs 7, 8, & 9

1шт.

6

87570139

DECAL

Bolt Torquing Sequence

1шт.

7

87029972

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

20шт.

8

9850384

WASHER,23mm ID x 40mm OD x 6mm Thk

20шт.

9

87283521

STUD,M22 x 180

2шт.
