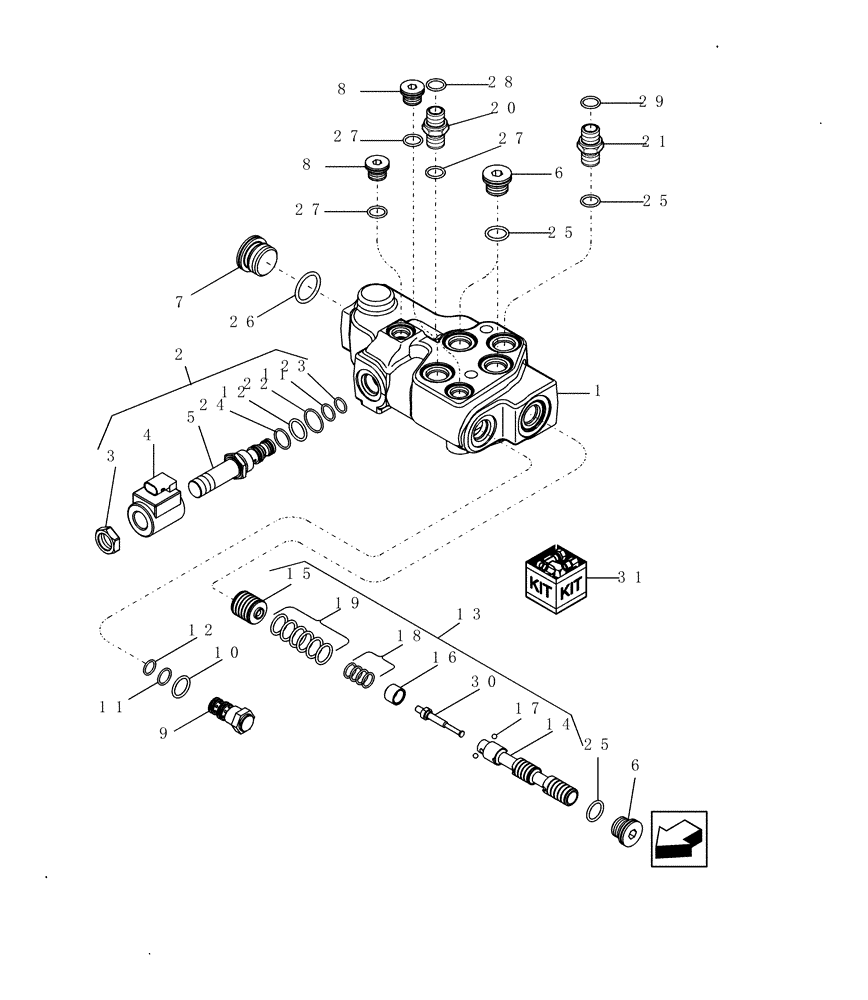

1
86981234
HYDRAULIC VALVE
Unloading Clutch/Rotor Gearbox
1шт.
2
84135530
SOLENOID VALVE
Assembly PWM, Includes: Refs 3, 4, 5, 11, 12, 22 Thru 24
1шт.
3
304836A1
NUT
Retainer
1шт.
4
304834A1
SOLENOID
1шт.
5
304831A1
SPOOL
Cartridge
1шт.
6
221578A1
PLUG,M18 x 1.5 ORB
Includes: Ref 25
3шт.
7
221580A1
PLUG,M27 x 2 ORB
Includes: Ref 26
1шт.
8
221576A1
PLUG,Hex Soc, M14 x 1.5, ORB
Includes: Ref 27
3шт.
9
177120A1
PLUG
Solenoid Valve, 2 GPM
1шт.
10
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
11
238-5014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro
2шт.
12
238-5013
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
2шт.
13
86981236
SPOOL
ASSEMBLY, Includes: Refs 14 - 19, 30
1шт.
14
86981237
SPOOL
Modulation
1шт.
15
NSS
NOT SOLD SEPARAT
PISTON Modulator Assembly
1шт.
16
NSS
NOT SOLD SEPARAT
SLEEVE Retaining
1шт.
17
511-1040
BALL,4mm Dia
2шт.
18
NSS
NOT SOLD SEPARAT
SPRING, Light Modulation
1шт.
19
NSS
NOT SOLD SEPARAT
SPRING, Preload
1шт.
20
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
1шт.
21
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Includes: Refs 25, 29
1шт.
22
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
23
238-7016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro
1шт.
24
238-7018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
1шт.
25
86598101
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
5шт.
26
86598103
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
27
86598099
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
3шт.
28
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
29
9992298
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
30
NSS
NOT SOLD SEPARAT
Pin
1шт.
31
308245A1
SEAL KIT
Includes (1) each of Refs 11, 12, 22, 23, 24
1шт.
