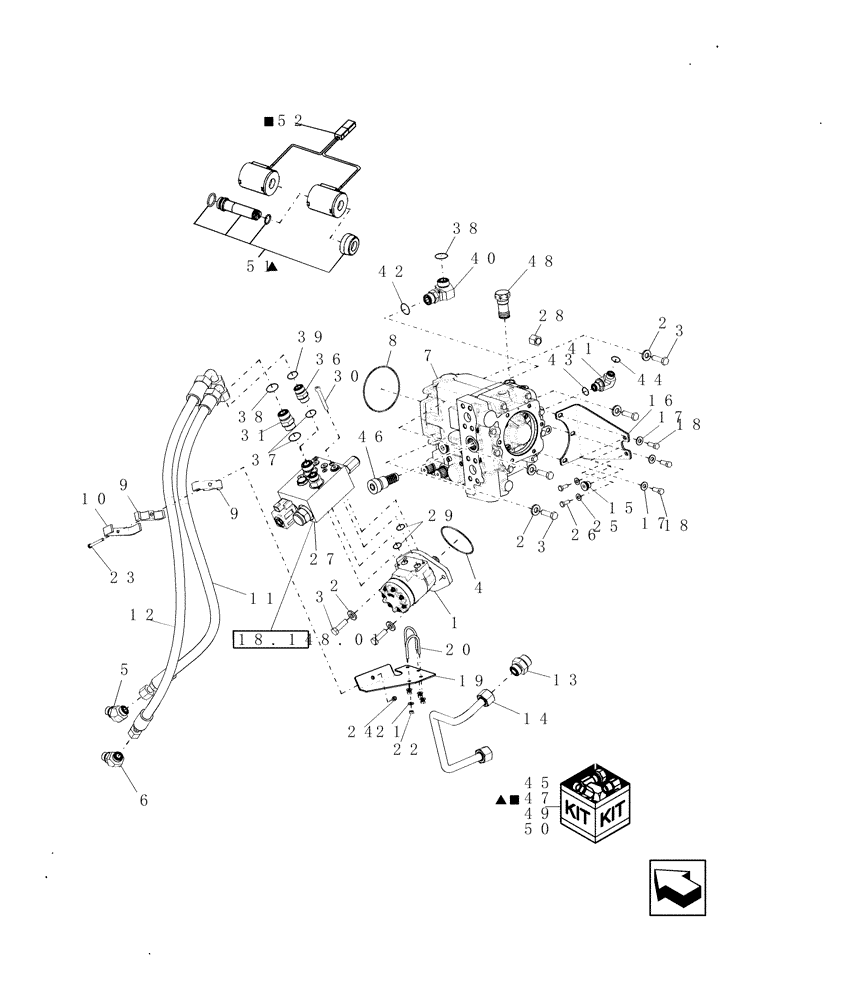

Запчасти Case IH 9010 (35.910.05[01]) - FIXED SPEED - FEEDER / HEADER DRIVE HYDRAULICS - PRIOR TO PIN HAJ202001 (35) - HYDRAULIC SYSTEMS

1

87284672

MOTOR, HYDRAULIC,66CC

1шт.

2

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

6шт.

3

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

6шт.

4

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

5

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

6

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

1шт.

7

87281160

PUMP, HYDRAULIC

1шт.

7

87284709

PUMP

Reman

1шт.

7

87284710

CORE-HYDRAULIC PUMP

1шт.

8

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

9

457547

CLAMP

2шт.

10

743320

SUPPORT

1шт.

11

87283792

HOSE,16mm ID x 1270mm L

Supply, Reverser

1шт.

12

87284629

FLEXIBLE HOSE

Return, Reverser

1шт.

13

86579683

HYD CONNECTOR,1-3/16"-12 ORFS x M33 x 2.0 ORB

1шт.

14

87283801

HYD TUBE,0.75" OD

Feeder Gearcase Drain

1шт.

15

86598046

PLUG,M18 x 1.5 ORB

1шт.

16

87323284

BRACKET

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

19

87283795

BRACKET

Hose Support

1шт.

20

799339

U-BOLT

2шт.

21

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

22

9706755

NUT,M6, Cl 8

4шт.

23

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.

24

353308

NUT,M6 x 1.0, Cl 8

1шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

27

87284673

VALVE

Reverser

1шт.

28

9840575

CAP,13/16" - 16 ORFS

1шт.

29

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

30

87302046

HEX SOC SCREW,M8 x 80mm, Cl 8.8

4шт.

31

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

1шт.

32

353308

NUT,M6 x 1.0, Cl 8

1шт.

36

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

1шт.

37

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

38

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

41

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

1шт.

42

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

43

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

44

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

9807617

SEAL KIT

For Ref 1 Motors

1шт.

46

86995060

VALVE

Port Relief

1шт.

47

87450563

KIT

EP Controller; Includes: Refs 51, 52, Plus Gasket 87450566 (1) & Screw 61-33132 (6)

1шт.

For Ref 7

1шт.

48

87450568

PLUG

Orifice, Charge Relief

1шт.

49

87450569

SEAL KIT

Pump

1шт.

For Ref 7

1шт.

50

87450570

SEAL KIT

Shaft

1шт.

For Ref 7

1шт.

51

87450565

SOLENOID

Tube

1шт.

52

87450564

SOLENOID,Coil Pair

Solenoid Coil

1шт.
