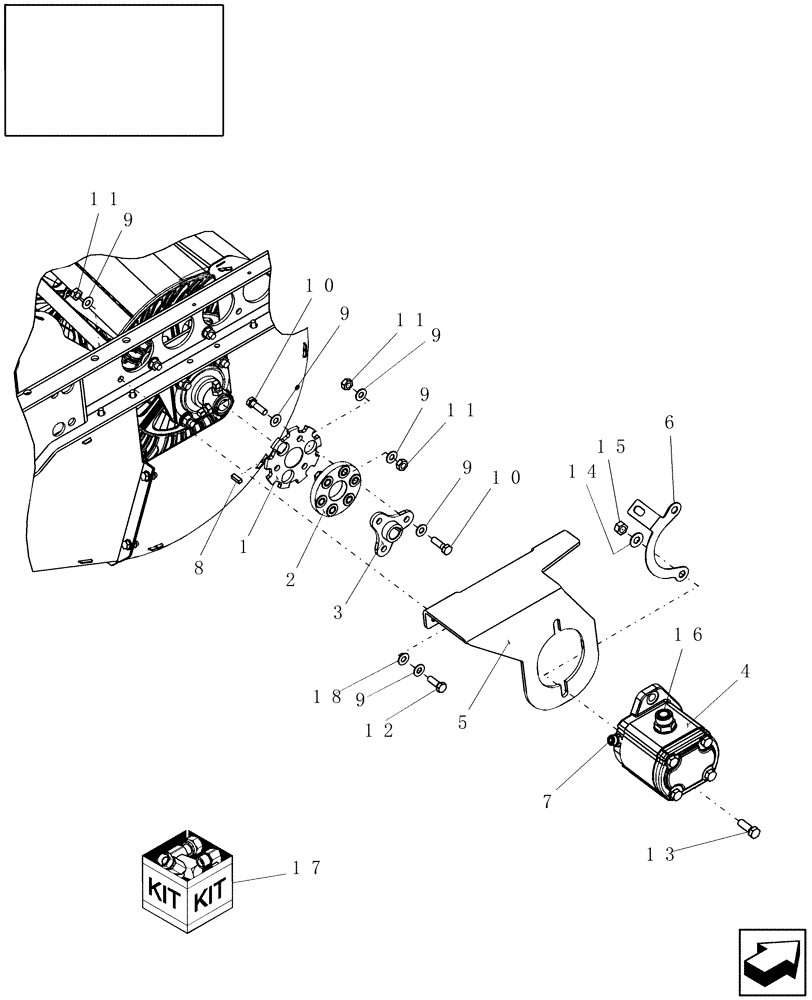

Запчасти Case IH 9010 (35.910.04[02]) - CLEANING FAN DRIVE MOUNTING, AFTER 10/06 - 7010/8010 (35) - HYDRAULIC SYSTEMS

1

87635900

FLANGE ASSY

1шт.

2

9811514

FLEXIBLE COUPLING

1шт.

3

87545435

FLANGE ASSY

1шт.

4

87106499

HYDRAULIC MOTOR

See Also: Ref 17

1шт.

87105499R

REMAN-HYD MOTOR

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Reman for New P/N 87106499

1шт.

87105499C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

5

87545740

SUPPORT ASSY.

1шт.

6

87546819

BRACKET

1шт.

Prior To PIN HAJ202001

1шт.

6

87639847

BRACKET

1шт.

PIN HAJ202001 & After

1шт.

7

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

1шт.

8

87545936

KEY,6.35mm W x 21mm OAL x 6.35mm Thk

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

10

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

11

100016

NUT,M10 x 1.5, Cl 8

8шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

13

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

17

87010913

SEAL KIT

Services Ref 4

1шт.

18

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.
