Запчасти Case IH 9010 (35.910.04[01]) - CLEANING FAN DRIVE MOUNTING, PRIOR TO 10/06 - 8010 (35) - HYDRAULIC SYSTEMS

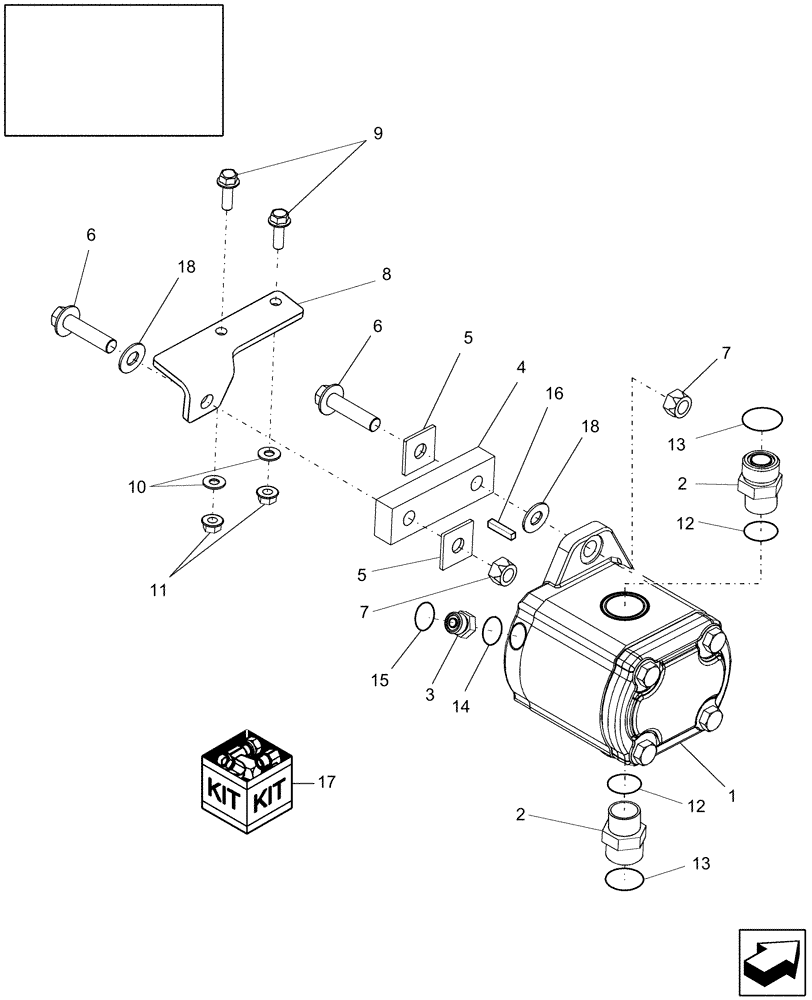

Схема запчастей Case IH 9010 - (35.910.04[01]) - CLEANING FAN DRIVE MOUNTING, PRIOR TO 10/06 - 8010 (35) - HYDRAULIC SYSTEMS
17
10
5
13
13
3
11
18
7
15
2
6
16
2
8
5
4
9
7
6
12
18
1
14
12

Артикул

Название

Примечание

Количество

1

87105499

HYDRAULIC MOTOR,GEAR, 38 CC

Cleaning Fan; Includes: Ref 16 - See Also: Ref 17

1шт.

87105499R

REMAN-HYD MOTOR

8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08)

1шт.

87105499C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

3

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

1шт.

4

87105907

BAR

Cleaning Fan Drive

1шт.

5

87105920

PLATE

Cleaning Fan Drive

2шт.

6

300512

BOLT,Hex, M12 x 55mm, Cl 8.8

2шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

87108487

BRACKET

1шт.

9

84989606

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

12

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

87545936

KEY,6.35mm W x 21mm OAL x 6.35mm Thk

1шт.

17

87010913

SEAL KIT

KIT

1шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

Выбрано товаров: 20
